Product Code: 101193168

Enhance your machine safety with the Schmersal BNS36 series safety sensor, designed for reliable operation and easy integration. This robust sensor features a thermoplastic enclosure and is equipped with integral system diagnostics to ensure consistent performance. It supports two openers and has two safety contacts, with a magnet as the actuating element. The right-hinged door design is complemented by an 8 mm 6-pole connector with latching interlocking for secure connections. Operating at a switching voltage of 24 VDC, it handles a current of 0.01 A and has a switching capacity of 0.2 W, ensuring low energy consumption while maintaining high safety standards. Trust in Schmersal's commitment to machine safety with this efficient and durable safety sensor solution.

Enclosure Material	Metal, zinc die-cast
Gross Weight (g)	20
Net Weight (g)	20
Maximum Temperature (°C)	70
Minimum Ambient Temperature (°C)	-30
Minimum Temperature (°C)	-25
Brand	SCHMERSAL
Series	BNS36
EAN	4030660000000
eCl@ss Number, Version 9.0	27-27-06-01
ETIM 7.0	EC000030
ETIM 6.0	EC000030
eCl@ss Number, Version 11.0	27-27-06-91
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	1.5
Contact Material	Silver
Maximum Fuse Rating	4 A gG D-fuse to DIN EN 60269-1
Minimum Mechanical Life	10000000 Operations
No. of Safety Contacts	2
Nominal Output Current (A)	0.01
Nominal Power (W)	0.2
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	500
Rated Maximum Operational Voltage DC (V)	24
Switching Element	Opener (NC)
Switching Principle	Slow action
Terminal Type	Screw terminals M20 x 1.5
Utilisation Category AC-15	230 VAC
Utilisation Category DC-13	24 VDC
Sensor Length (mm)	47
Sensor Height (mm)	129.5
Degree of Protection	IP67
Standards	EN ISO 13849-1 / EN IEC 60947-5-1 / BG-GS-ET-15

Presence Sensing Safety Devices

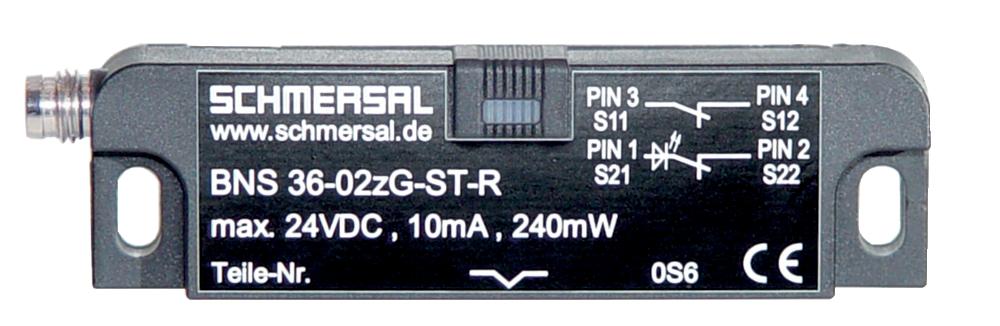

SCHMERSAL BNS36-02ZG-ST-R SAFETY SENSOR 101193168
