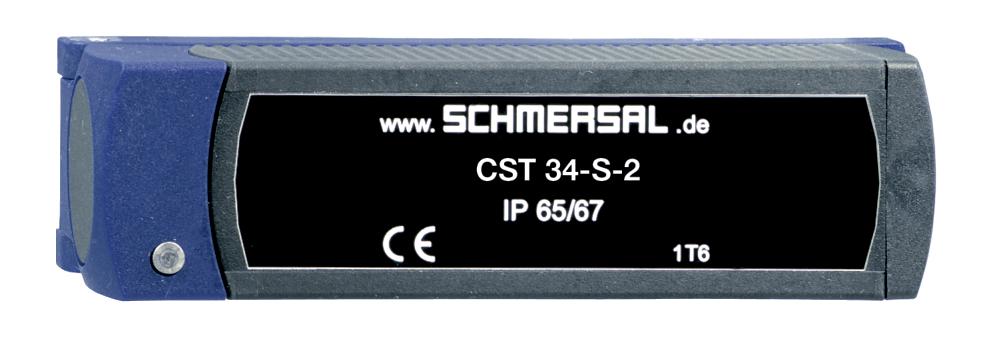

SCHMERSAL CST34-S-2 SAFETY SENSOR 101196101

Product Code: 101196101

Enhance your machine safety with the Schmersal CST34 series safety sensor. This robust actuator is crafted from durable plastic and designed for lateral or front activation. With dimensions of 35 mm in length, 102 mm in width, and 27 mm in height, it's engineered to integrate seamlessly into a variety of safety applications. Trust in the reliability of Schmersal's expertise in machine safety solutions.

Technical Specifications

Enclosure Material Plastic, glass-fibre-reinforced
Gross Weight (g) 515
Net Weight (g) 461
Minimum Ambient Temperature (°C) -30
Brand SCHMERSAL
Series CST34
EAN 4030660000000
eCl@ss Number, Version 9.0 27-27-26-01
ETIM 7.0 EC000030
ETIM 6.0 EC000030
eCl@ss Number, Version 11.0 27-27-26-01
Maximum Ambient Temperature (°C) 50
Maximum Cable Cross Section (mm²) 4
Minimum Cable Cross Section (mm²) 0.25
Contact Material Silver
Maximum Fuse Rating 6 A gG D-fuse quick blow
Minimum Mechanical Life 1000000 Operations
Rated Impulse Withstand Voltage (kV) 0.8
Rated Insulation Voltage (V) 250
Switching Element NO contact, NC contact
Switching Principle Snap action
Terminal Type Screw terminals M20 x 1.5
Utilisation Category AC-15 230 VAC
Utilisation Category DC-13 24 VDC
Sensor Length (mm) 40
Sensor Height (mm) 109
Degree of Protection IP65
Standards EN IEC 60947-5-1 / EN ISO 13849-1 / BG-GS-ET-15
