Brand	Schmersal
Latching Force (N)	15
Maximum Reaction Time (ms)	150
Minimum Ambient Temperature (°C)	-25
No. of Safety Contacts	2
Rated Operational Current (A)	0.05
Degree of Protection	IP65/IP67
Dimensions (mm)	179Hx40Wx40W
Enclosure Material	Thermoplastic
Holding Force (N)	750 (Typically)
Maximum Ambient Temperature (°C)	+55
Maximum Operational Voltage DC (V)	26.4
Minimum Operational Voltage DC (V)	20.4
No. of LED	3
No. of Poles	8
Pollution Degree	3
Rated Impulse Withstand Voltage (kV)	0.8
Rated Insulation Voltage DC (V)	32
Standards and Approvals	EN IEC 60947-5-3, EN IEC 61508
Terminal Type	Connector M12
Weight (kg)	0.699

Safety Interlocks

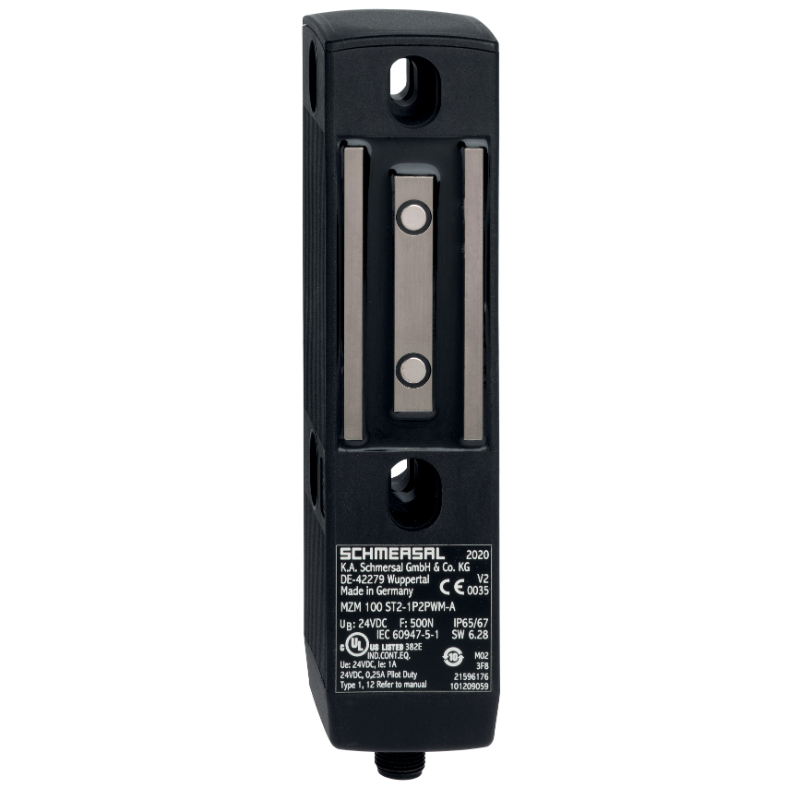

SCHMERSAL ENCLOSED SOLENOID INTERLOCK 101209059
