Product Code: 101209107

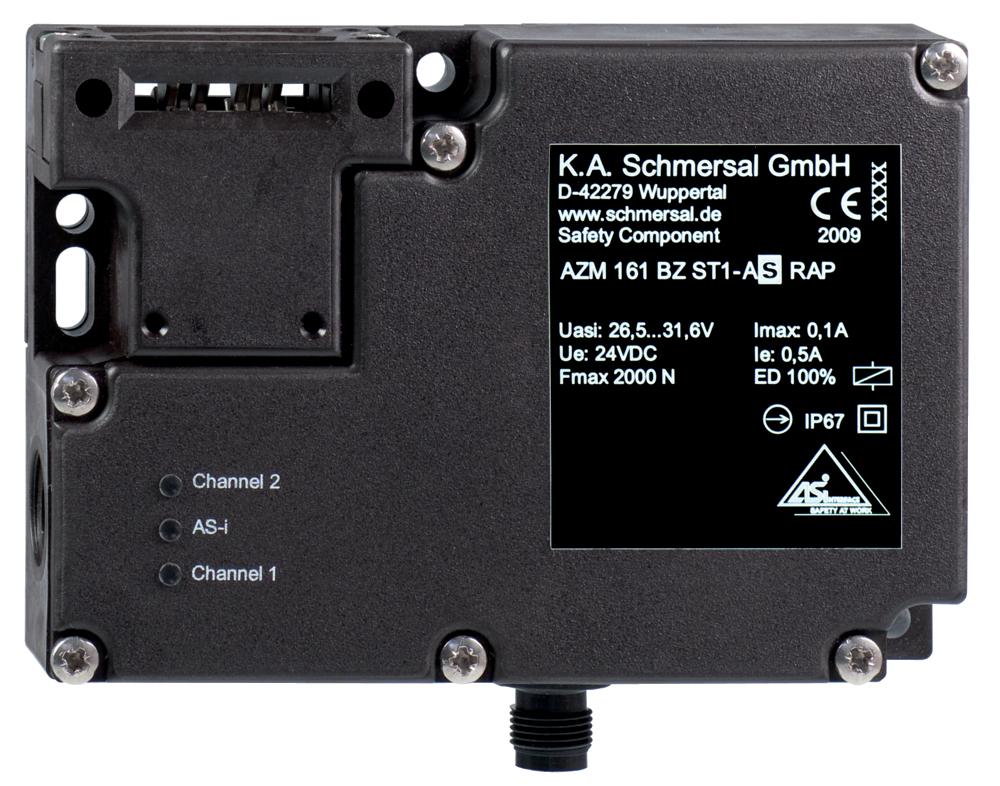

The Schmersal AZM161 series safety switchgear is a robust machine safety solution featuring a solenoid interlock within a durable thermoplastic enclosure. This switchgear is designed with an integrated AS-Interface and requires power to unlock, ensuring secure guard locking that's continuously monitored. It includes a manual release option and integral system diagnostics for reliable operation. The unit supports three actuating directions and comes equipped with an M12 4-pole (A-coding) connector plug positioned at the bottom for easy installation. Operating on a voltage range of 26.5-31.6 VDC, it has a moderate current consumption of 250 mA, making it an efficient choice for safeguarding machinery without compromising performance.

Brand	SCHMERSAL
eCl@ss Number, Version 11.0	27-27-06-01
eCl@ss Number, Version 9.0	27-24-22-90
ETIM 6.0	EC000030
ETIM 7.0	EC001449
Gross Weight (g)	95
Maximum Fuse Rating	20 A gG D-fuse
Maximum Temperature (°C)	60
Minimum Ambient Temperature (°C)	-10
Minimum Temperature (°C)	-25
Net Weight (g)	100
Sensor Height (mm)	103.5
Sensor Length (mm)	30
Utilisation Category AC-15	230 VAC
Utilisation Category DC-13	24 VDC
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Grey cast iron, galvanised
Maximum Ambient Temperature (°C)	80
Minimum Mechanical Life	1000000 Operations
Series	AZM161
Standards	EN IEC 60947-5-1 / BG-GS-ET-19
Terminal Type	Cable, 4-pole

Safety Interlocks

SCHMERSAL AZM161Z-ST1-AS-R SOLENOID INTERLOCK 101209107

Product Code: 101209107
