Product Code: 101215266

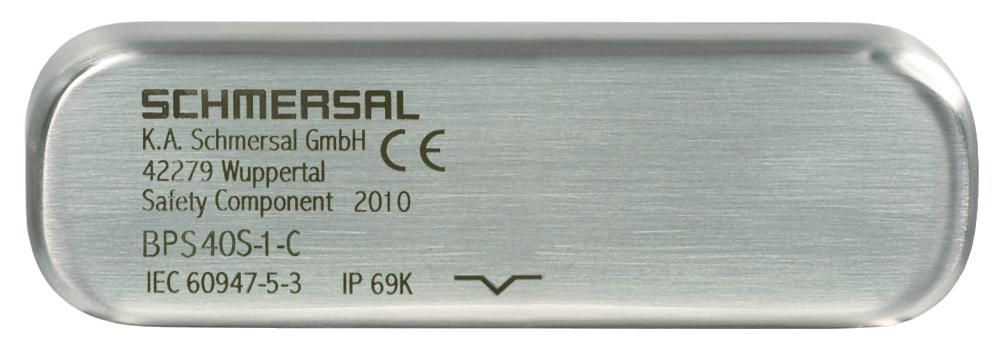

Enhance your machine safety with the Schmersal BPS40S series safety sensor, crafted from durable V4A stainless steel for longevity and reliability. This sensor features a sleek design with concealed threaded holes on the back for easy installation and a clean aesthetic. The actuator measures 88 mm in length and 27 mm in width, ensuring a compact fit for various applications. Ideal for engineers seeking robust safety solutions, the BPS40S is a top choice in the machine safety category.

Enclosure Material	Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Gross Weight (g)	224.539
Net Weight (g)	217.06
Minimum Ambient Temperature (°C)	-20
Brand	SCHMERSAL
Series	BPS40S
EAN	4030660000000
eCl@ss Number, Version 9.0	27-27-06-01
ETIM 7.0	EC000030
ETIM 6.0	EC002544
eCl@ss Number, Version 11.0	27-27-01-05
Maximum Ambient Temperature (°C)	80
Minimum Mechanical Life	20000000 Operations
Terminal Type	Screw terminals M20 x 1.5
Utilisation Category AC-15	240 VAC
Utilisation Category DC-13	24 VDC
Sensor Length (mm)	46
Sensor Height (mm)	90
Degree of Protection	IP20
Standards	EN IEC 60947-5-1

Presence Sensing Safety Devices

SCHMERSAL BPS40S-1-C SAFETY SENSOR 101215266
