Product Code: 103003944

Enhance your machine safety with the Schmersal SLC Series Safety Light Curtains. Designed for reliability, this system features 32 beams and a detection ability of 30 mm, ensuring precise object recognition. The protection field stands at a height of 650 mm, suitable for various applications. With restart interlock and integral system diagnostics, it ensures continuous safety monitoring and easy recovery post-trip. The unit operates on a 24 VDC power supply and maintains efficiency with a low electrical power consumption of just 10 W. Installation is simplified with a terminal connector, and two fail-safe digital outputs provide secure connections to control systems. Trust in Schmersal's commitment to machine safety with this robust safety light curtain solution.

Brand	SCHMERSAL
eCl@ss Number, Version 11.0	27-27-06-90
eCl@ss Number, Version 9.0	27-27-26-01
ETIM 6.0	EC002592
ETIM 7.0	EC002592
Gross Weight (g)	2440
Maximum Temperature (°C)	50
Minimum Ambient Temperature (°C)	-30
Minimum Temperature (°C)	-10
Net Weight (g)	2640
Nominal Power (W)	10
Rated Maximum Operational Voltage DC (V)	24
Sensor Height (mm)	30
Sensor Length (mm)	33
Utilisation Category AC-15	230 VAC
Utilisation Category DC-13	24 VDC
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Plastic, glass-fibre-reinforced
Maximum Ambient Temperature (°C)	50
Minimum Mechanical Life	3000000 Operations
Series	SLC
Standards	EN IEC 60947-5-1 / EN ISO 13849-1 / BG-GS-ET-15
Terminal Type	Screw terminals M20 x 1.5

Presence Sensing Safety Devices

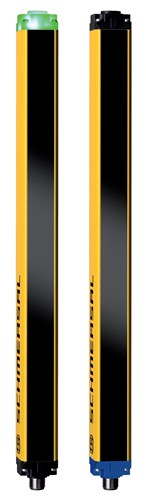

SCHMERSAL SLC440COM-ER-0650-30 SAFETY LIGHT CURTAIN 103003944

Product Code: 103003944
