Specifications

Enclosure Material	Glass-fibre, reinforced thermoplastic
Maximum Ambient Temperature (°C)	80
Minimum Ambient Temperature (°C)	-25
Gross Weight (g)	1600
Net Weight (g)	1800
Brand	SCHMERSAL

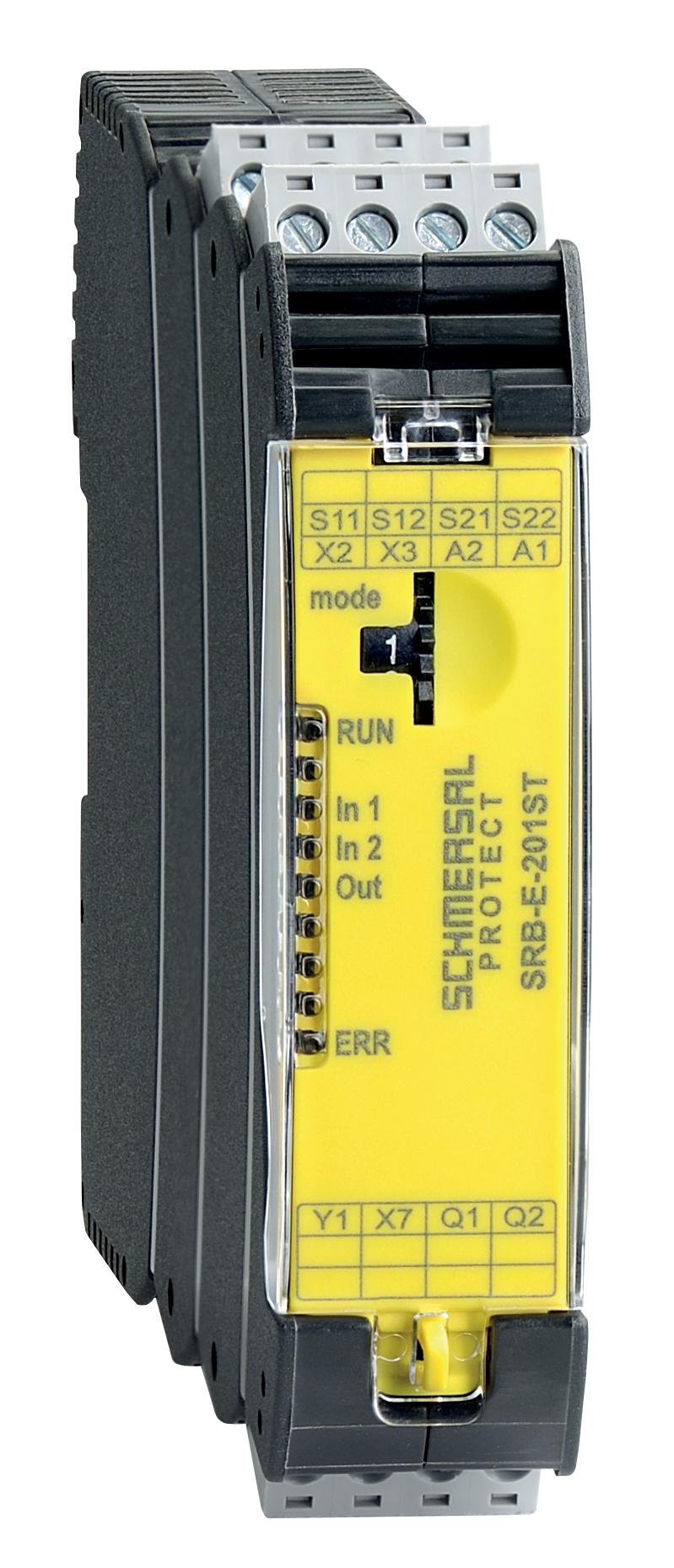

Product Type	Safety Relay
EAN	4030660000000
eCl@ss Number, Version 9.0	27-27-26-03
ETIM 7.0	EC002591
ETIM 6.0	EC000030
eCl@ss Number, Version 11.0	27-27-24-03
Terminal Type	Screw terminals M20 x 1.5 \| rigid or flexible
Utilisation Category AC-15	50 VAC
Utilisation Category DC-13	24 VDC
Sensor Length (mm)	91
Degree of Protection	IP67
Standards	EN IEC 60947-5-1 / EN ISO 13849-1 / EN IEC 61508 / EN IEC 60204-1 / EN IEC 60947-5-3 / EN IEC 62061 / EN IEC 60947-5-5 / EN IEC 60947-1
