Brand	Schmersal
Gross Weight (g)	300
Latching Force (N)	30
No. of Safety Contacts	2
RFID Transmission Frequency (kHz)	125
Utilisation Category AC-15	100
Working Principle	RFID
Ambient Temperature Range (°C)	-20 ... +80
Degree of Protection	IP66 … IP67 … IP69
Dimensions (mm)	119.5L X 40W X 20H
Housing Material	Light alloy die cast and plastic (glass-fibre reinforced thermoplastic)
Rated Impulse Withstand Voltage (kV)	0.8
Rated Insulation Voltage (V)	32 VDC
Standards and Approvals	EN IEC 60947-5-3 EN IEC 61508 EN ISO 13849-1 EN ISO 14119

Safety Interlocks

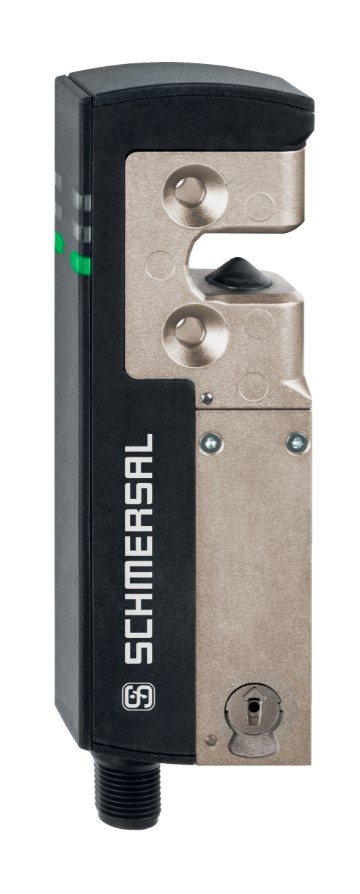

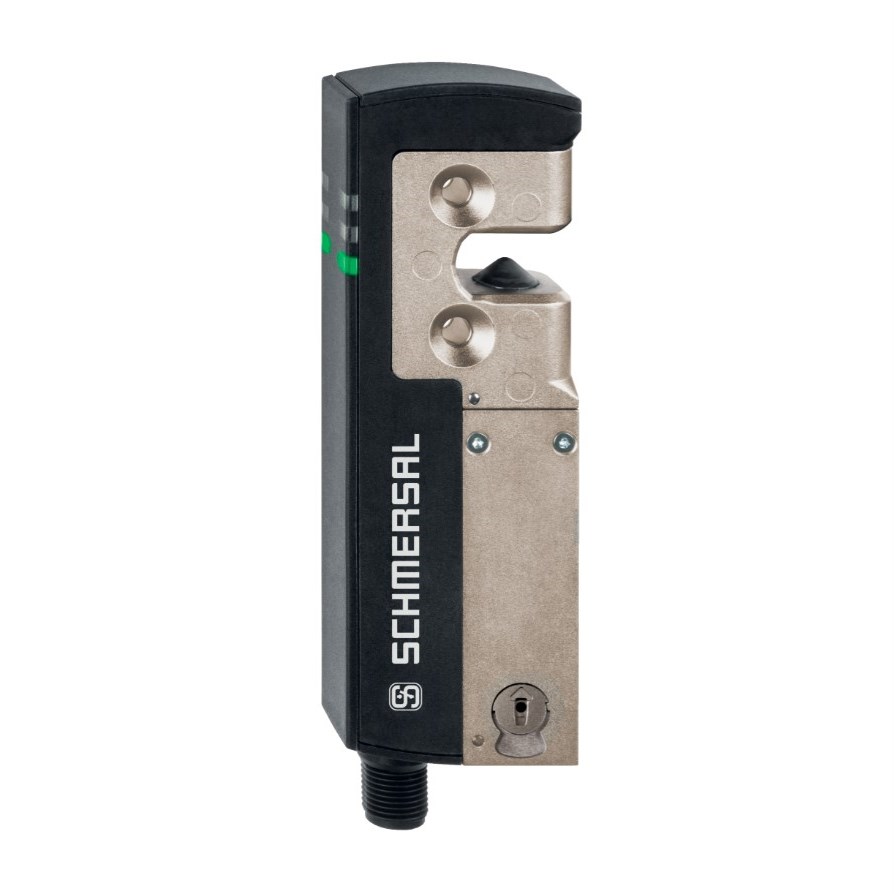

SCHMERSAL SOLENIOD INTERLOCK 125kHz RFID AZM40Z-I2-ST-1P2P 103034189
