Brand	SCHMERSAL
Minimum Ambient Temperature (°C)	-40
No. of Auxiliary Contacts	2
No. of Safety Contacts	2
Rated Operational Current AC-15 (A)	3
Rated Operational Current DC-13 (A)	3
Rated Operational Voltage AC-15 (V)	230V AC
Rated Operational Voltage DC-13 (V)	24V DC
Termination	Spring Pulley Connection
Thermal Test Current (A)	6
Utilisation Category	DC-13
Cable Entry	2 x M25 x 1.5
Contact Material	Silver
Degree of Protection	IP66
Housing Material	Thermosetting Resin
Maximum Ambient Temperature (°C)	70
Maximum Cable Cross Section (mm²)	2.5 , flexible
Minimum Cable Cross Section (mm²)	0.5 , flexible
Minimum Mechanical Life	1000000 Operations
Pollution Degree	3
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	300
Standards and Approvals	EN IEC 60947-5-1, EN ISO 13849-1

Safety Interlocks

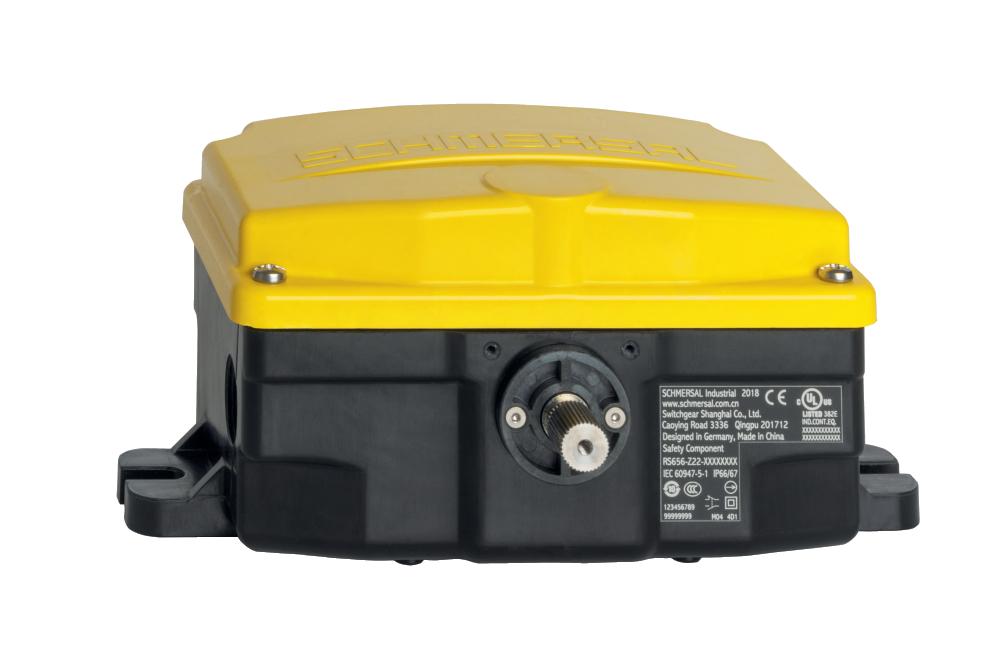

SCHMERSAL BS656-Z22 153031622
