IPD SPLIT-CORE CT TO 58 600A/5A CLASS 0,5 2,5VA 192T4660

Product Code: 192T4660

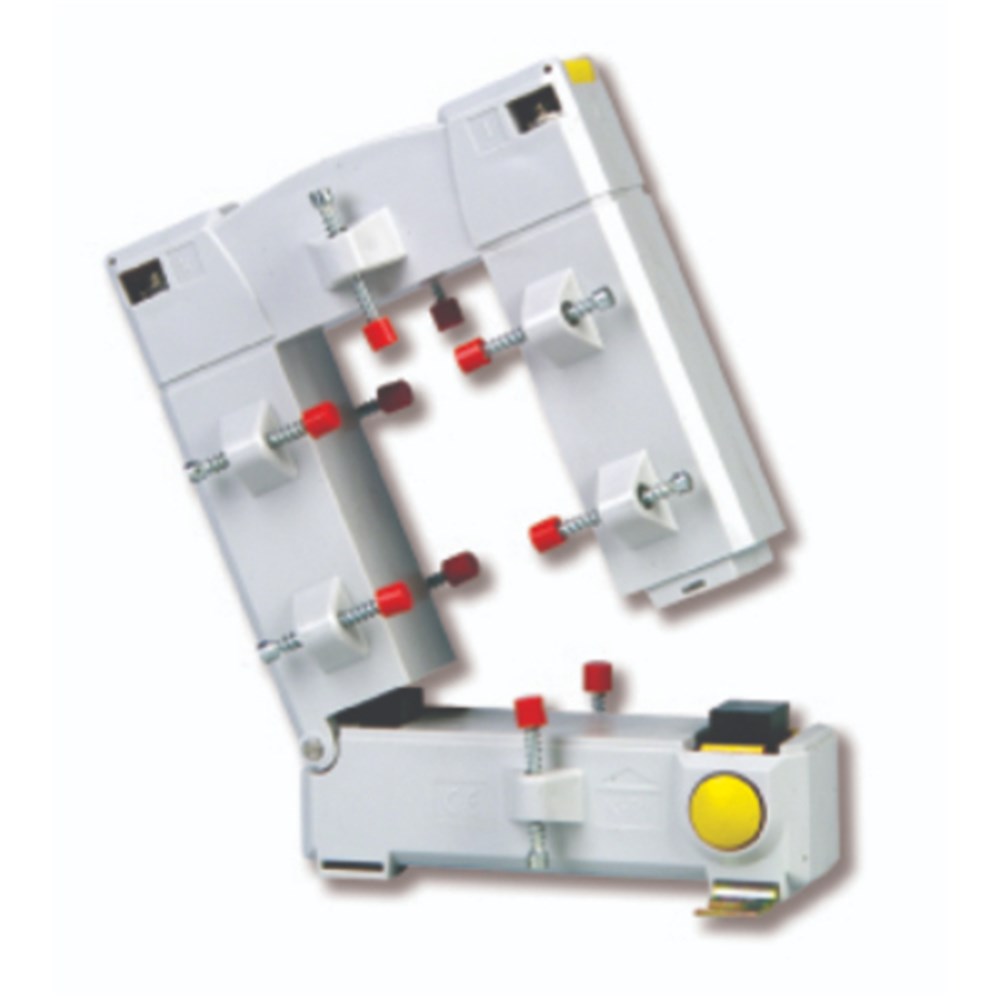

The Split-core current transformer has a current ratio of 600/5 and an accuracy class of 0.5 at 2.5VA. It has a dielectric quality of 3kV/1min at 50Hz and an insulation class of E (120 °C). The transformer comes with removable terminal covers as standard. The dimensions of the TO58 type are 158Hx125Wx58Dmm, with an opening size of 55x85mm. It can be easily mounted in various ways, including flat, DIN rail, or back plate using two screw-on metal brackets or a clip-on DIN rail fastener.

Technical Specifications

Model TO 58
Brand IPD
Accuracy Class 0.5
CT Burden - Accuracy Class 0.5 (VA) 2.5
CT Ratio 600/5
Rated Current (A) 600
Rated Frequency (Hz) 50/60
Rated Primary Current - I?? (A) 600
Rated Secondary Current - I?? (A) 5
Secondary Rated Current 5
