Brand	ABB
EAN	8015644694470
Breaking Capacity 415V AC - Icu (kA)	18
Current Rating (A)	63
Design of Control Element	Toggle
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
No. of Poles	3
Power Loss (W)	4.3
Rated Current (A)	63
Rated Instantaneous Short-Circuit Current - Ii (A)	630
Rated Uninterrupted Current - Iu (A)	160
Rated Voltage (V)	690
Size of Frame	XT1
Trip Unit	TMD
Degree of Protection	IP20
MCCB Type	XT1 Frame
Poles	3P
Breaking Capacity (kA)	18
Tripping Unit	TMD
Trip Unit - Thermal Magnetic	TMD

Moulded Case Circuit Breakers

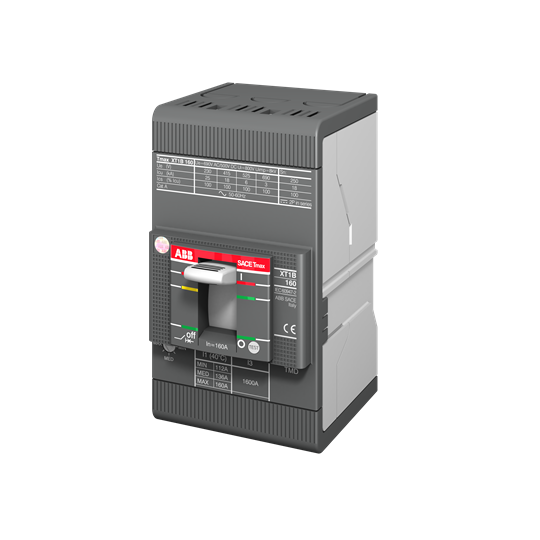

ABB XT1B 160 TMD 63-630 3P F F 1SDA066805R1
