Brand	ABB
Design of Control Element	Toggle
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
MCCB Type	XT2 Frame
Rated Instantaneous Short-Circuit Current - Ii (A)	63
S/I (1 to 10 x In) - I2/I3 (A)	63 - 630
Tripping Unit	Ekip DIP LS/I
Breaking Capacity (kA)	36
Breaking Capacity 415V AC - Icu (kA)	36
Current Rating (A)	63
Degree of Protection	IP20
EAN	8015644009977
L (0.4 to 1 x In) - I1 (A)	25.2 - 63
No. of Poles	4
Poles	4P
Power Loss (W)	1.7
Rated Current (A)	63
Rated Uninterrupted Current - Iu (A)	160
Rated Voltage (V)	690
Size of Frame	XT2
Trip Unit	Ekip DIP LS/I
Trip Unit - Electronic	Ekip DIP LS/I

Moulded Case Circuit Breakers

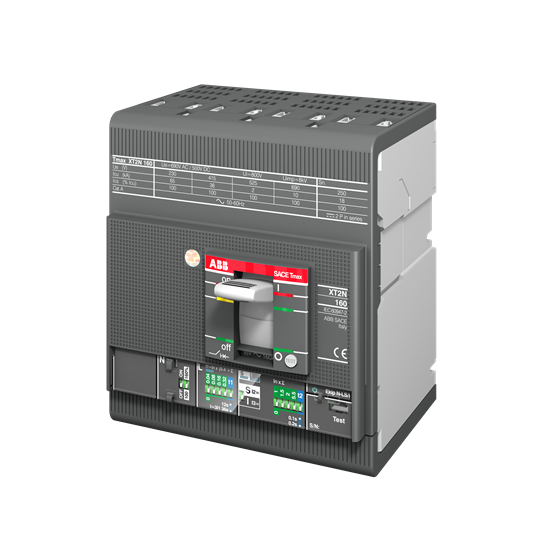

ABB XT2N 160 EKIP LS/I IN=63A 4P F F 1SDA067092R1
