Brand	ABB
EAN	8015644013219
Breaking Capacity 415V AC - Icu (kA)	36
Current Rating (A)	125
Design of Control Element	Toggle
Magnetic - I3 (A)	1250
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
No. of Poles	4
Power Loss (W)	10.7
Rated Current (A)	125
Rated Instantaneous Short-Circuit Current - Ii (A)	1250
Rated Uninterrupted Current - Iu (A)	160
Rated Voltage (V)	690
Thermal (0.7 to 1 x In) - I1 (A)	87.5 - 125
Size of Frame	XT1
Trip Unit	TMD
Degree of Protection	IP20
MCCB Type	XT1 Frame
Poles	4P
Breaking Capacity (kA)	36
Tripping Unit	TMD
Trip Unit - Thermal Magnetic	TMD

Moulded Case Circuit Breakers

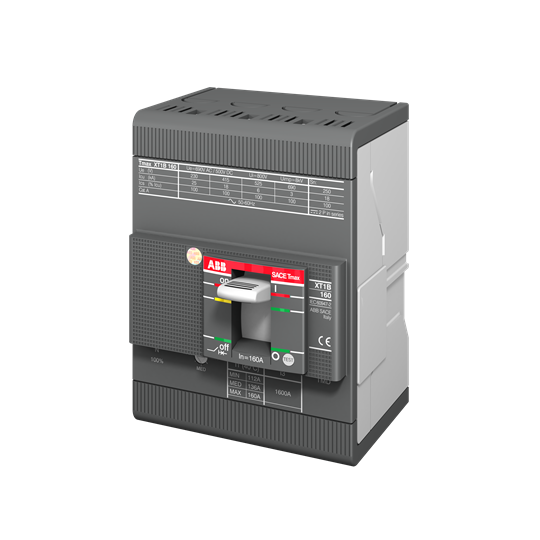

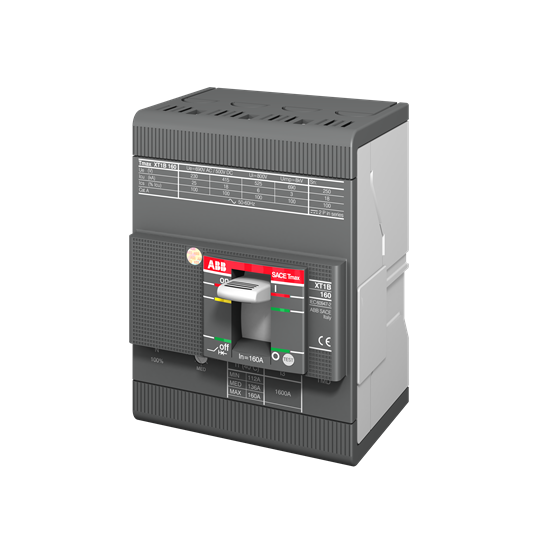

ABB XT1N 160 TMD 125-1250 4P F F INN=100% 1SDA067427R1
