Brand	ABB
EAN	8015644764265
AC Voltage (V)	690
Breaking Capacity 400V AC - Icu (kA)	150
Breaking Capacity 415V AC - Icu (kA)	150
Current Rating (A)	4000
Design of Control Element	Push Button
Earth Fault Protection	Yes
Indication	Switched-off Indicator
Main Circuit Electrical Connection	Connection at Separate Chassis Part
Main Current Circuit Connection Position	Connection at Separate Chassis Part
No. of Auxiliary Change-over Contacts	4
No. of Poles	3
Overload Release Current Setting (A)	1600
Power Loss (W)	900
Rated Current (A)	4000
Rated Impulse Withstand Voltage (kV)	12
Rated Instantaneous Short-Circuit Current - Ii (A)	6000
Rated Insulation Voltage AC (V)	1000
Rated Operational Voltage AC (V)	690
Rated Short-time Withstand Current - Icw (kA/1s)	100
Rated Uninterrupted Current - Iu (A)	4000
Rated Voltage (V)	690
Size of Frame	E4.2
Trip Unit	EKIP Touch LSIG
Degree of Protection	IP30
Standards and Approvals	IEC
Poles	3P
Breaking Capacity (kA)	150 @415V AC
Trip Unit - Electronic	EKIP Touch LSIG
Frame	E4.2
Icw (kA/1s) - Short-time Withstand Current Rating	100
Iu - Uninterrupted Current Rating (A)	4000

Air Circuit Breakers

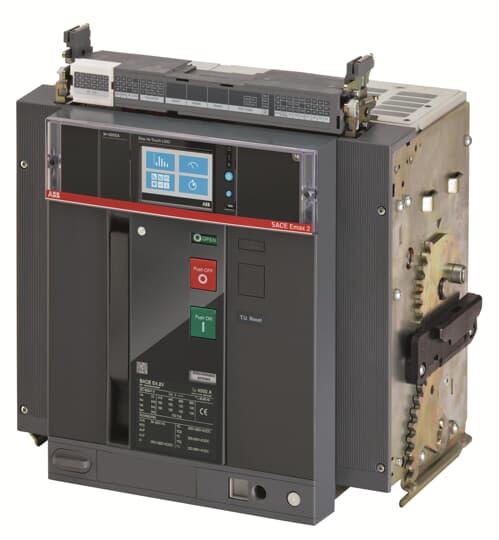

ABB E4.2V 4000 EKIP TOUCH LSIG 3P WMP 1SDA072576R1
