Brand	ABB
Design of Control Element	Toggle
Magnetic (5 to 10 x In) - I3 (A)	3150 - 6300
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
MCCB Type	XT5 Frame
Overload Release Current Setting (A)	252
Rated Instantaneous Short-Circuit Current - Ii (A)	3150
Thermal (0.7 to 1 x In) - I1 (A)	441 - 630
Trip Unit - Thermal Magnetic	TMA
Tripping Unit	TMA
Breaking Capacity (kA)	36
Breaking Capacity 415V AC - Icu (kA)	36
Current Rating (A)	630
Degree of Protection	IP20
EAN	8056221004664
No. of Poles	4
Poles	4P
Power Loss (W)	47.8
Rated Current (A)	630
Rated Uninterrupted Current - Iu (A)	630
Rated Voltage (V)	690
Size of Frame	XT5
Trip Unit	TMA

Moulded Case Circuit Breakers

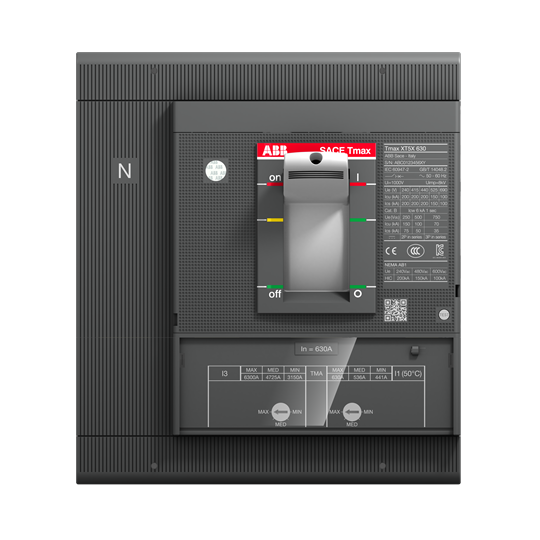

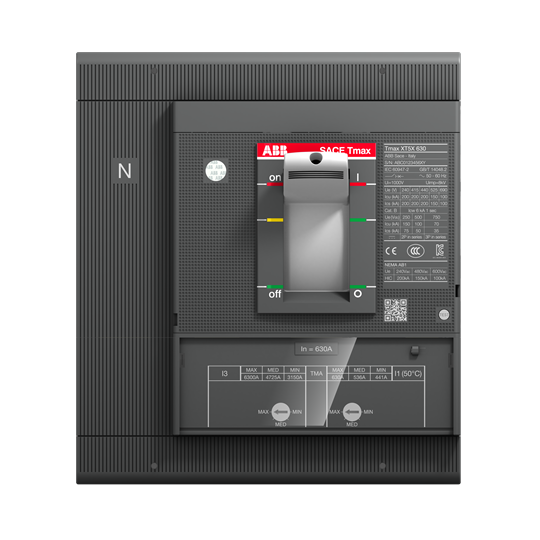

ABB XT5N 630 TMA 630-6300 4P F F INN=100%IN 1SDA100389R1
