Brand	ABB
EAN	8056221005722
Breaking Capacity 415V AC - Icu (kA)	70
Current Rating (A)	630
Design of Control Element	Toggle
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
No. of Poles	3
Overload Release Current Setting (A)	252
Power Loss (W)	45
Rated Current (A)	630
Rated Instantaneous Short-Circuit Current - Ii (A)	630
Rated Uninterrupted Current - Iu (A)	630
Rated Voltage (V)	690
Size of Frame	XT5
Trip Unit	EKIP DIP LSI
Degree of Protection	IP20
MCCB Type	XT5 Frame
Poles	3P
Breaking Capacity (kA)	70
Tripping Unit	EKIP DIP LSI
Trip Unit - Electronic	EKIP DIP LSI

Moulded Case Circuit Breakers

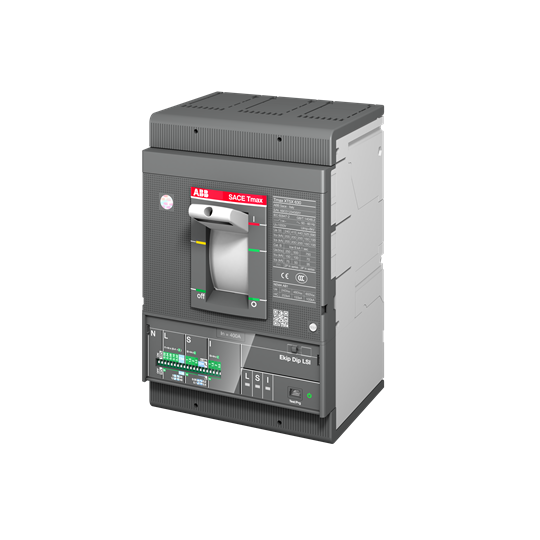

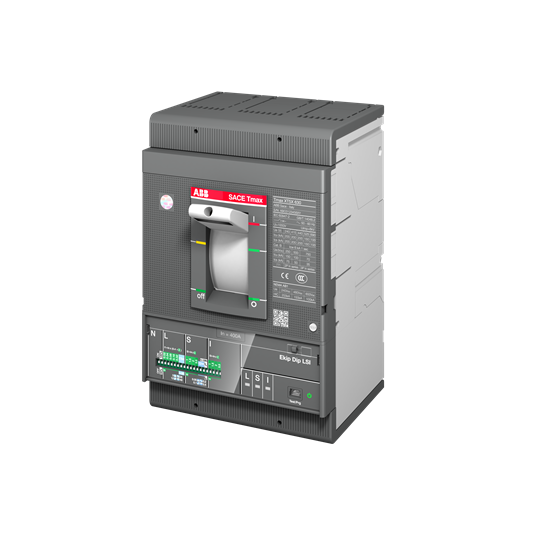

ABB XT5H 630 EKIP DIP LSI IN=630 3P F F 1SDA100495R1
