Brand	ABB
EAN	8056221006033
Breaking Capacity 415V AC - Icu (kA)	70
Current Rating (A)	320
Design of Control Element	Toggle
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
No. of Poles	4
Overload Release Current Setting (A)	128
Power Loss (W)	11.6
Rated Current (A)	320
Rated Instantaneous Short-Circuit Current - Ii (A)	320
Rated Uninterrupted Current - Iu (A)	400
Rated Voltage (V)	690
Size of Frame	XT5
Trip Unit	EKIP DIP LS/I
Degree of Protection	IP20
MCCB Type	XT5 Frame
Poles	4P
Breaking Capacity (kA)	70
Tripping Unit	EKIP DIP LS/I
Trip Unit - Electronic	EKIP DIP LS/I

Moulded Case Circuit Breakers

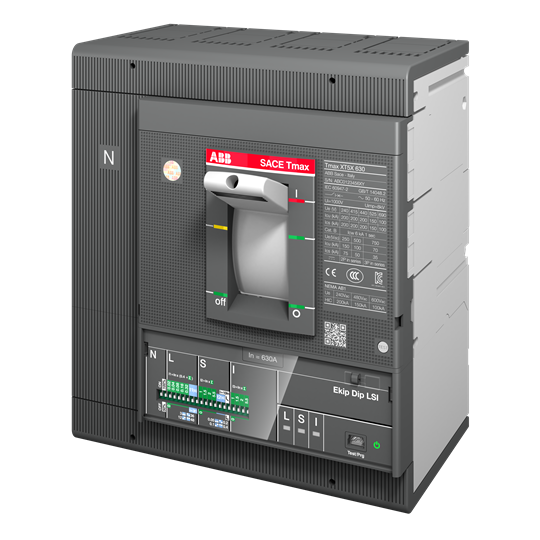

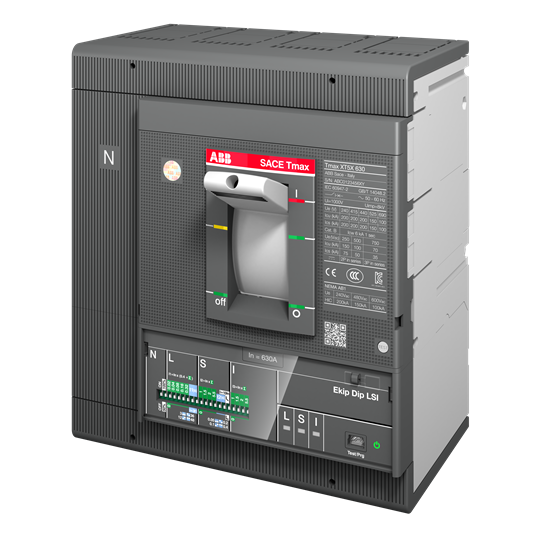

ABB XT5H 400 EKIP DIP LS/I IN=320 4P F F 1SDA100527R1
