Brand	ABB
Design of Control Element	Toggle
I (1 to 10 x In) - I3 (A)	800 - 8000
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
MCCB Type	XT6 Frame
Overload Release Current Setting (A)	320
Rated Instantaneous Short-Circuit Current - Ii (A)	800
S (1 to 10 x In) - I2 (A)	800 - 8000
Tripping Unit	Ekip DIP LSI
Breaking Capacity (kA)	50
Breaking Capacity 415V AC - Icu (kA)	50
Current Rating (A)	800
Degree of Protection	IP20
EAN	8056221003681
L (0.4 to 1 x In) - I1 (A)	320 - 800
No. of Poles	3
Poles	3P
Power Loss (W)	53.4
Rated Current (A)	800
Rated Uninterrupted Current - Iu (A)	800
Rated Voltage (V)	690
Size of Frame	XT6
Trip Unit	Ekip DIP LSI
Trip Unit - Electronic	Ekip DIP LSI

Moulded Case Circuit Breakers

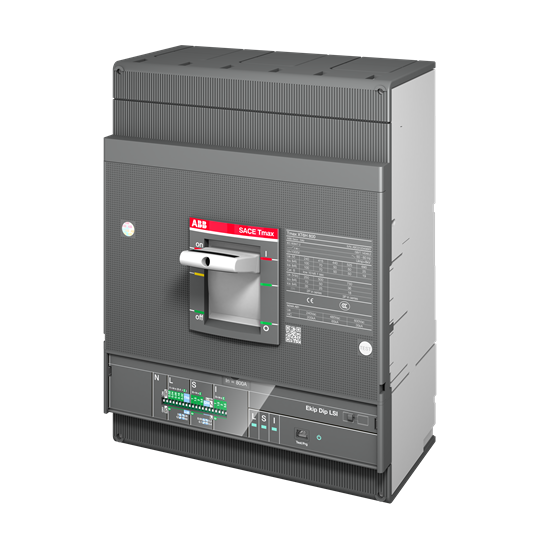

ABB XT6S 800 EKIP DIP LSI IN=800 3P F F 1SDA100743R1
