Brand	ABB
Design of Control Element	Toggle
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
MCCB Type	XT7 Frame
Overload Release Current Setting (A)	400
Rated Instantaneous Short-Circuit Current - Ii (A)	1000
Tripping Unit	Ekip DIP LSI
Breaking Capacity (kA)	50
Breaking Capacity 415V AC - Icu (kA)	50
Current Rating (A)	1000
Degree of Protection	IP20
EAN	8056221008853
I (1.5 to 15 x In) - I3 (A)	1500 - 15000
L (0.4 to 1 x In) - I1 (A)	400 - 1000
No. of Poles	3
Poles	3P
Power Loss (W)	37
Rated Current (A)	1000
Rated Uninterrupted Current - Iu (A)	1000
Rated Voltage (V)	690
S (0.6 to 10 x In) - I2 (A)	600 - 10000
Size of Frame	XT7
Trip Unit	Ekip DIP LSI
Trip Unit - Electronic	Ekip DIP LSI

Moulded Case Circuit Breakers

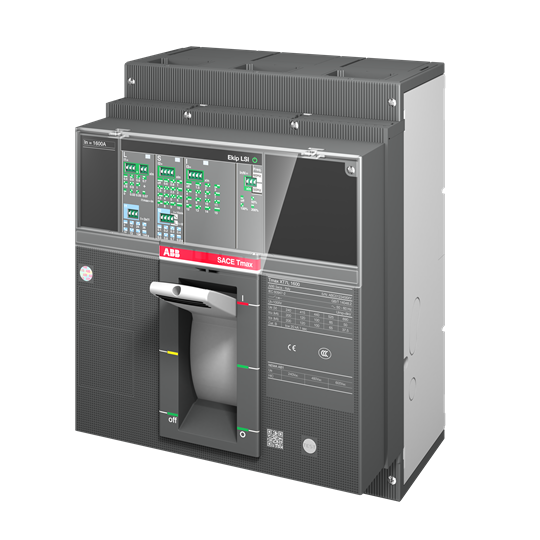

ABB XT7S 1000 EKIP DIP LSI IN=1000A 3P F F 1SDA100831R1
