Brand	ABB
Design of Control Element	Toggle
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
MCCB Type	XT7 Frame
Overload Release Current Setting (A)	640
Rated Instantaneous Short-Circuit Current - Ii (A)	1600
Tripping Unit	Ekip DIP LSI
Breaking Capacity (kA)	50
Breaking Capacity 415V AC - Icu (kA)	50
Current Rating (A)	1600
Degree of Protection	IP20
EAN	8056221008877
I (1.5 to 15 x In) - I3 (A)	2400 - 24000
L (0.4 to 1 x In) - I1 (A)	640 - 1600
No. of Poles	3
Poles	3P
Power Loss (W)	94
Rated Current (A)	1600
Rated Uninterrupted Current - Iu (A)	1600
Rated Voltage (V)	690
S (0.6 to 10 x In) - I2 (A)	960 - 16000
Size of Frame	XT7
Trip Unit	Ekip DIP LSI
Trip Unit - Electronic	Ekip DIP LSI

Moulded Case Circuit Breakers

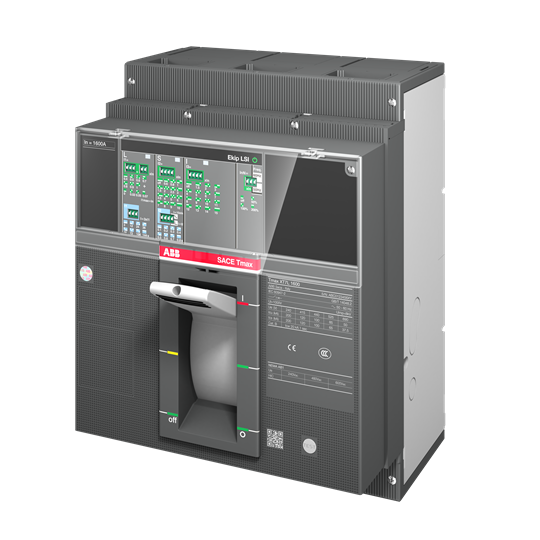

ABB XT7S 1600 EKIP DIP LSI IN=1600A 3P F F 1SDA100833R1
