Brand	ABB
EAN	8056221012546
Breaking Capacity 415V AC - Icu (kA)	70
Current Rating (A)	1250
Design of Control Element	Toggle
I (1.5 to 15 x In) - I3 (A)	1875 - 18750
L (0.4 to 1 x In) - I1 (A)	500 - 1250
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
No. of Poles	3
Overload Release Current Setting (A)	500
Power Loss (W)	57
Rated Current (A)	1250
Rated Instantaneous Short-Circuit Current - Ii (A)	1250
Rated Uninterrupted Current - Iu (A)	1250
Rated Voltage (V)	690
S (0.6 to 10 x In) - I2 (A)	750 - 12500
Size of Frame	XT7M
Trip Unit	Ekip DIP LSI
Degree of Protection	IP20
MCCB Type	XT7M Frame
Poles	3P
Breaking Capacity (kA)	70
Tripping Unit	Ekip DIP LSI
Trip Unit - Electronic	Ekip DIP LSI

Moulded Case Circuit Breakers

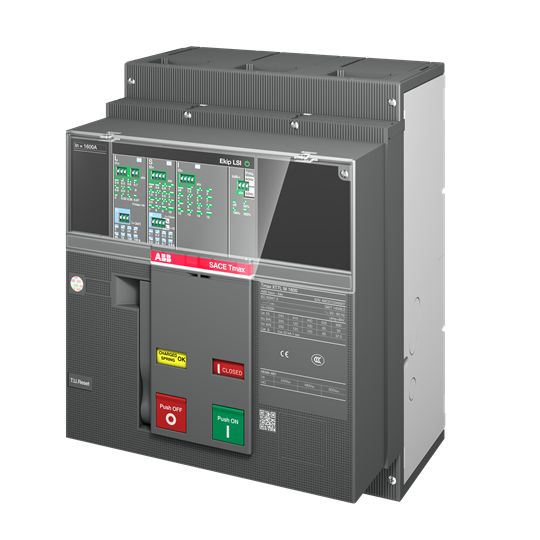

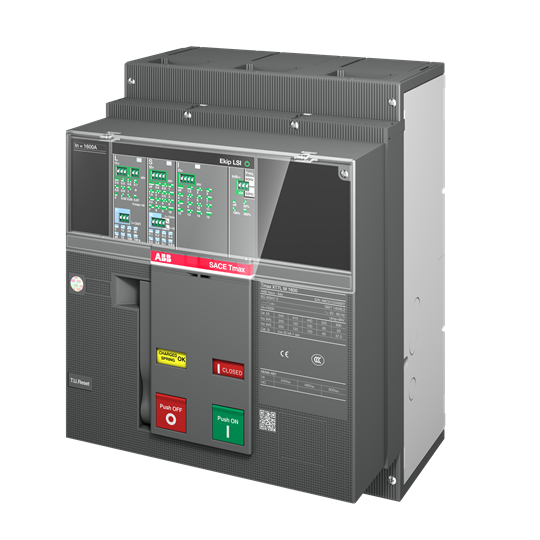

ABB XT7H M 1250 EKIP DIP LSI IN=1250A 3P F F 1SDA101436R1
