Brand	ABB
Design of Control Element	Toggle
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
MCCB Type	XT7M Frame
Overload Release Current Setting (A)	500
Rated Instantaneous Short-Circuit Current - Ii (A)	1250
Tripping Unit	Ekip DIP LSI
Breaking Capacity (kA)	50
Breaking Capacity 415V AC - Icu (kA)	50
Current Rating (A)	1250
Degree of Protection	IP20
EAN	8056221017046
I (1.5 to 15 x In) - I3 (A)	1875 - 18750
L (0.4 to 1 x In) - I1 (A)	500 - 1250
No. of Poles	4
Poles	4P
Power Loss (W)	57
Rated Current (A)	1250
Rated Uninterrupted Current - Iu (A)	1250
Rated Voltage (V)	690
S (0.6 to 10 x In) - I2 (A)	750 - 12500
Size of Frame	XT7M
Trip Unit	Ekip DIP LSI
Trip Unit - Electronic	Ekip DIP LSI

Moulded Case Circuit Breakers

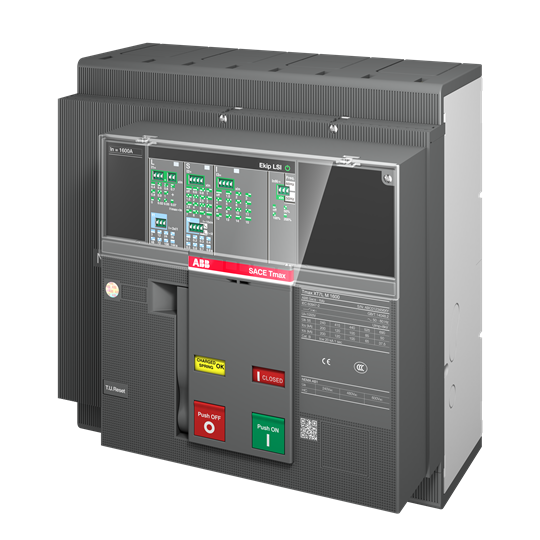

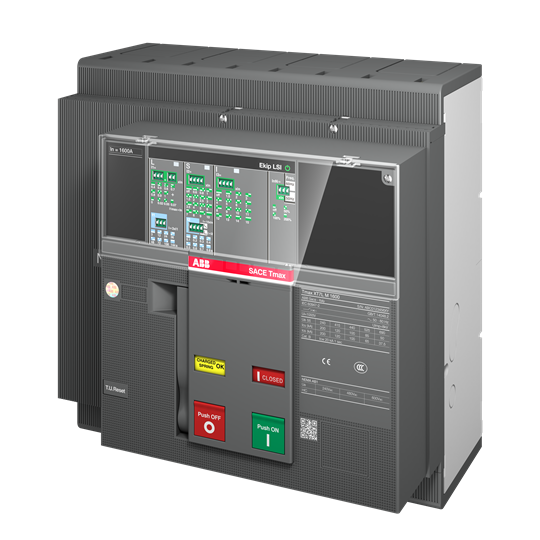

ABB XT7S M 1250 EKIP DIP LSI IN=1250A 4P F F 1SDA101660R1
