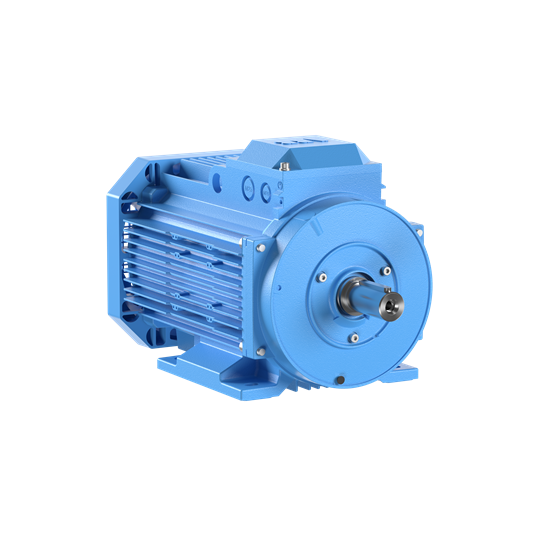

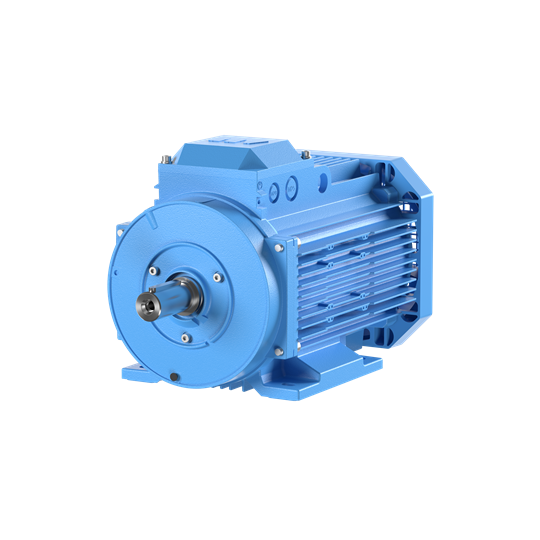

ABB IE3 ALUMINUM MOTOR 2P 1.5KW 400VY FOOT MOUNT B3 IP55 3GAA091520-ASK - Motors

Product Code: 3GAA091520-ASK

Brand	ABB
Degree of Protection	IP55
Dimensions (mm)	170W x 217H x 331.5D
Efficiency	84.20%
Frame Size	IEC 132
Motor Poles	2
Mounting Method	Foot Mount B3
Net Weight (kg)	5
Output Power (kW)	1.5
Phases	3
Power Factor	0.88Y/0.89D
Rated Power (kW)	1.5
Rated Voltage (V)	415Y/ 230D
Torque (Nm)	4.9
Voltage (V)	415Y/ 230D
