Brand	ABB
Efficiency	IE3
Frame Size	315
Motor Designation	General Performance - Cast Iron Motors
Motor Poles	2
Mounting Method	Flange mounted, large flange, IM B5, IM 3001
Rated Power (kW)	200
Colour	Blue
Connection Type	DELTA - 415V in D & 690V in Y
Dimensions (mm)	1734 X 874 X 1284
Weight (kg)	1180

Motors

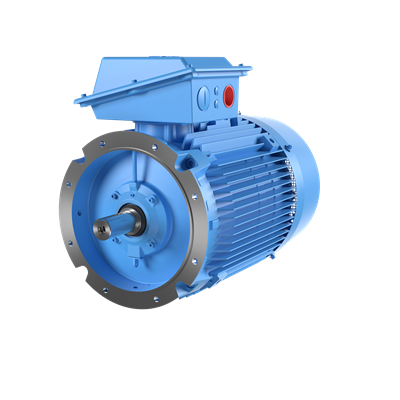

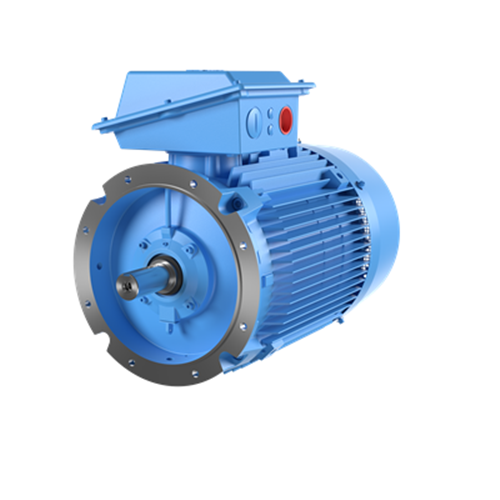

ABB IE3 CAST IRON MOTOR 2P 200kW 400VD BIG FLANGE MOUNT B5 IP66 M2BAX315MLA 3GBA311410-BDM
