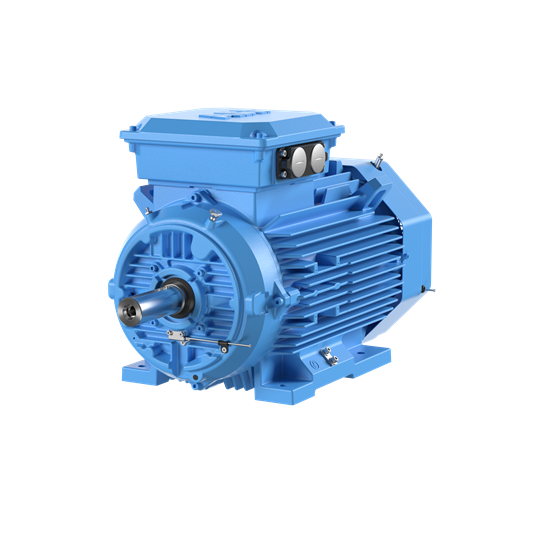

ABB IE5 SYNRM CAST IRON MOTOR 4P 1500RPM 11kW 400VY M3BL160MLA FOOT MOUNT B3 IP55 3GBL162413-ASC

Product Code: 3GBL162413-ASC

Synchronous motor 3-Phase 400VAC 11kW 24.2A, speed 1500 r/min. Power factor 0.75, efficiency 94 %. Duty type S1, both side direction of rotation insulation class ICLF, IP55.

Technical Specifications

Brand ABB
Efficiency IE5
Frame Size 160
Motor Designation Synchronous reluctance motors
Motor Poles Rated RPM = 1500 at 50Hz
Mounting Method Foot-mounted, term. box top, IM B3, IM 1001
Rated Power (kW) 11
Colour Blue
Connection Type Input Voltage - 415V
Degree of Protection IP55
