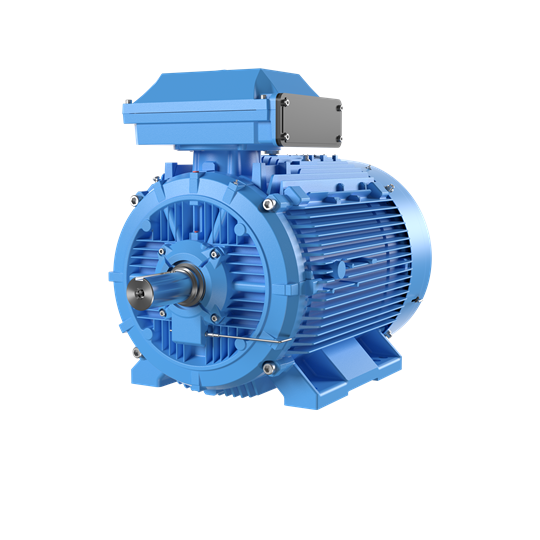

ABB IE5 SYNRM CAST IRON MOTOR 4P 1500RPM 75kW 400VD M3BL280SMA FOOT MOUNT B3 IP55 3GBL282213-ADC

Product Code: 3GBL282213-ADC

Synchronous motor 3-Phase 400VAC 75kW 166A, speed 1500 r/min. Power factor 0.730, efficiency 96.20 %. Duty type S9, both side direction of rotation insulation class ICLF, IP55.

Technical Specifications

Brand ABB
Efficiency IE5
Frame Size 280
Motor Designation Synchronous reluctance motors
Motor Poles Rated RPM = 1500 at 50Hz
Mounting Method Foot-mounted, term. box top, IM B3, IM 1001
Rated Power (kW) 75
Colour Blue
Connection Type Input Voltage - 415V
Degree of Protection IP55
