Housing Material	Stainless steel 1.4404 (316L)
Diaphragm Material	Stainless steel 1.4435 (316L)
Version	Standard
Series	LMP308
Product Series	LMP 308
Accuracy	Standard for pN ≥ 0.4 bar: 0.35 % FSO
Application	Preferred areas of use are Water/ Filtrated sewage: Ground water level measurement. Level measurement in wells and open waters. Rain spillway basin. Level measurement in container. Water treatment plants. Water recycling.
Electrical Connection	PVC-cable (grey, Ø 7.4 mm) [Cable with integrated ventilation tube for atmospheric pressure reference]
Electrical Protection	Short-circuit protection: Permanent, Reverse polarity protection: No damage, but also no function, Lightning protection: Integrated, Electromagnetic compatibility: emission and immunity according to EN 61326.
Output Signal	4 … 20 mA / 2-wire
Permissible Temperatures	Medium: -20 … 70 °C Storage: -25 ... 70 °C
Pressure (mH2O)	25
Response Time (ms)	≤ 10
Seals	FKM
Cable Length (m)	40

Level Sensors

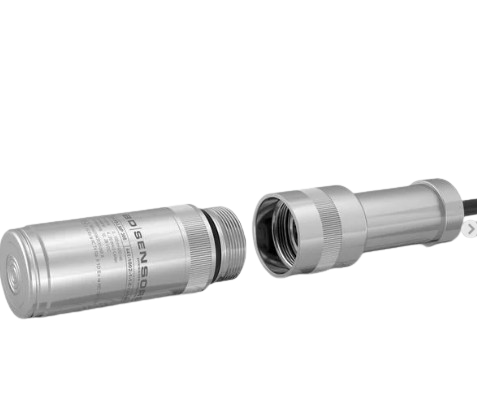

BD SENSORS LMP308 SEPARABLESTAINLESS STEEL PROBE25MH2O -40MT CABLE 4412501111113040000
