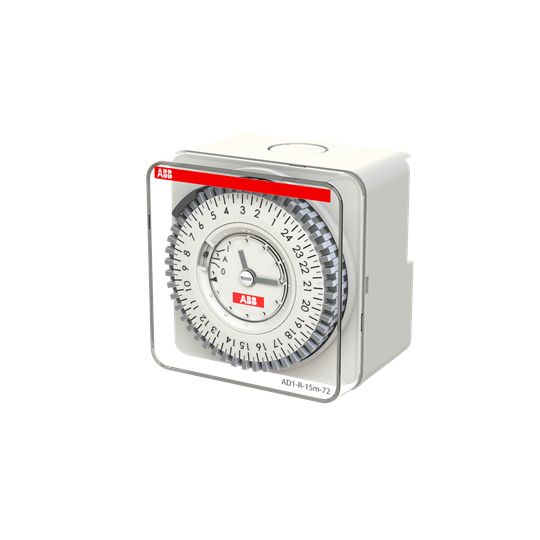

ABB ANALOG TIME SWITCH 24HR 3 MODULES WITH RESERVE AD1-R-15M-72

Product Code: AD1-R-15M-72

Analog time switch with battery backup for daily functioning. Can be mounted on DIN Rail or Panel. Minimum time of functioning is 15 minutes. Features a 1N/O contact with 16A capacity. Power consumption is 1.8W and operates on a 230VAC supply voltage. Consists of 96 pins and has a width of 17.5mm across 3 modules.

Technical Specifications

Brand ABB
Accuracy Operating: ± 1 sec/24h, Switching: ± 5 min
Battery Backup 100 hrs
Channels 1
Contacts 1CO
Degree of Protection IP20
Function Daily
Maximum Switching Current (A) 16(4)
Maximum Switching Voltage AC (V) 250
Minimum Switching Time (s) 900
Mounting Type DIN Rail/Panel
No. of Modules - Width 17.5 mm 1
No. of Switching Intervals 96 pins
Operational Temperature Range (°C) -10 to +45
Power Consumption (W) 1.8
Rated Current (A) 16
Rated Frequency (Hz) 50/60
Rated Supply Voltage AC/DC (V) 230V AC
Standards and Approvals EN 60730-2-7
Storage Temperature (°C) -20 to +60
Terminal Type Captive Screw
Universal Supply Voltage AC (V) 230
