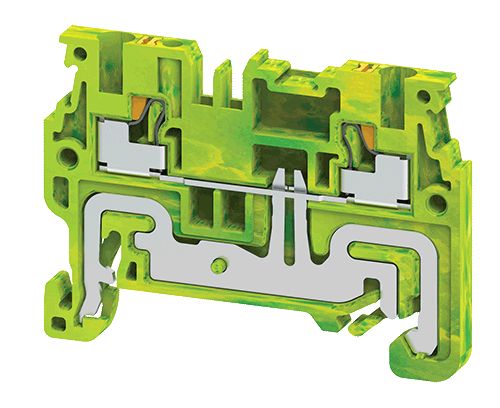

CONNECTWELL 1.5 MM PUSH IN GROUND TERMINL BLOCK CPG1.5

Product Code: CPG1.5

Technical Specifications

DIN Rail Mounting DIN 35/DIN 35-15 Rail
Wire Entry Top
Brand CONNECTWELL
Colour Green-Yellow
Conductor Cross Section (mm²) 0.2 (min), 1.5 (max)
Degree of Protection IP66
Height (mm) 32.8
Housing Material Polyamide
Length (mm) 45.3
Material Polyamide (Housing)
Mounting Type DIN rail
Pack Quantity 100
Pollution Degree 3
Rated Current (A) 15
Rated Voltage (V) 800
Surge Voltage (kV) 8
Width (mm) 3.5
Wire Stripping Length (mm) 8
