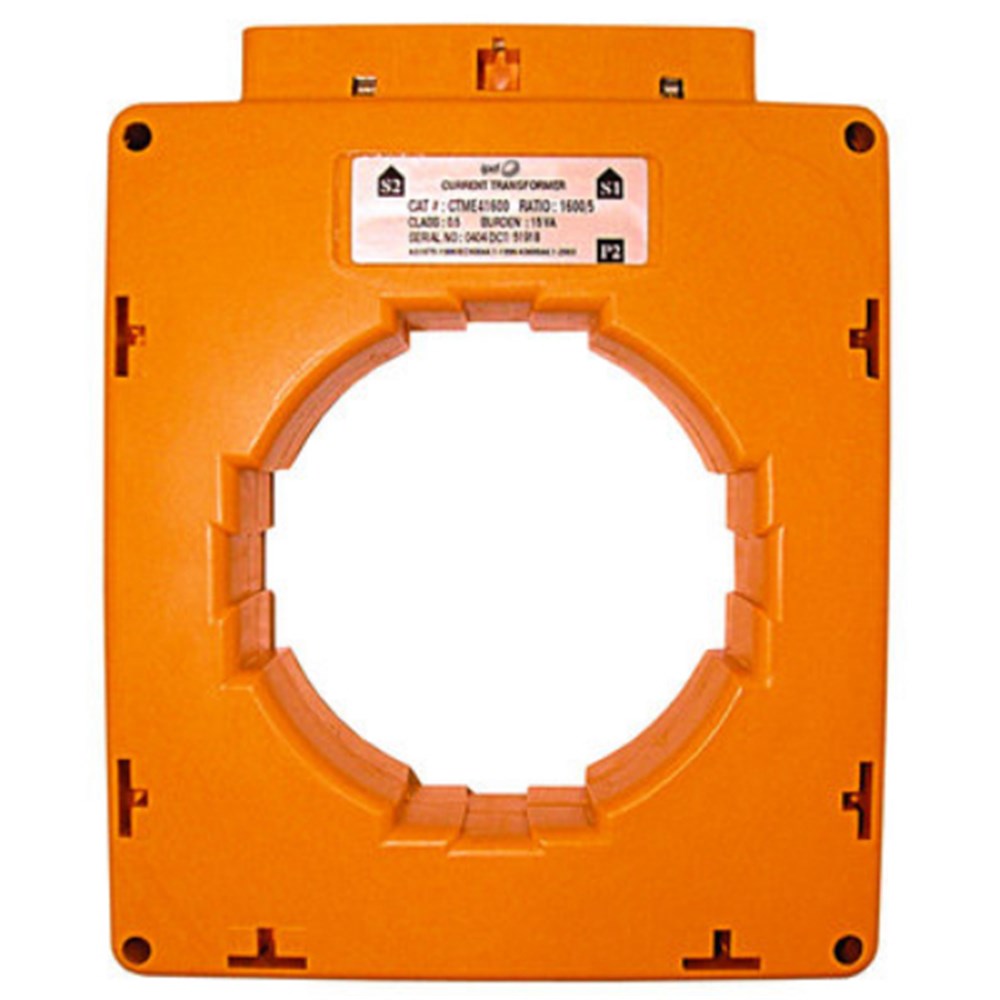

IPD CTME41600 CTME-4 SOLID-CORE CURRENT TRANSFORMER 1600/5 RATIO, CLASS 0.5 15VA

The CTME-4 solid-core current transformer is designed for accurate measurement of electrical currents. It has a current ratio of 1600/5 and an accuracy class of 0.5 at 15VA. The transformer features a single turn primary winding and a robust design made from high impact flame retardant materials. For added convenience, the CTME-4 comes with a clear sealable terminal cover as standard and knockouts in the terminal shrouds. It can operate within a temperature range of -20°C to +70°C and has an insulation class B (80°C). In terms of dimensions, the CTME-4 measures 157Hx129Wx42Dmm and has a cable diameter opening of 82mm. It can be mounted using fixed screws or DIN rail mounting, with mounting brackets and a busbar fixing device included. Overall, the CTME-4 solid-core current transformer offers accurate current measurement in a durable and convenient package.
