Standard Feed Through Terminal Blocks

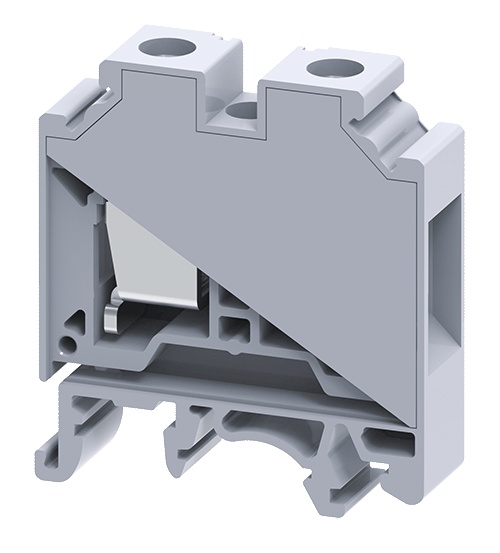

CONNECTWELL 16MM SCREW CLAMP 'GREY' TERMINAL BLOCK CTS16U-KN

Product Code: CTS16U-KN

Technical Specifications

DIN Rail Mounting DIN 32/DIN 35/DIN 35-15 Rail
Operator Type Screwdriver
Wire Entry Side Entry
Brand CONNECTWELL
Colour Grey
Conductor Cross Section (mm²) 0.5 (min), 16 (max)
Degree of Protection IP66
Height (mm) 47.8
Housing Material Polyamide
Length (mm) 43
Pack Quantity 50
Pollution Degree 3
Rated Current (A) 76
Rated Voltage (V) 1000
Screw Size M4
Surge Voltage (kV) 8
Tightening Torque (Nm) 1.2
Width (mm) 12
Wire Stripping Length (mm) 12
