Brand	ABB
AC Voltage (V)	240/415
Breaking Capacity (kA)	10 @240 V AC
Breaking Capacity 240V AC - Icu (kA)	10
Current Rating (A)	20
Curve Type	C Curve
Dimensions (mm)	17.8W x 125H x 70D
Family	DME100M
No. of Poles	1P+N
Operational Temperature Range (°C)	-5 to +55
Poles	1P+N
Rated Current (A)	20
Rated Frequency (Hz)	50/60
Rated Operational Voltage AC (V)	240
Rated Residual Current (mA)	30
Residual Current Type	A
Series	DME100M
Trip Curve	C Curve
Type of Residual Current	A
Weight (kg)	0.235

DIN MCB

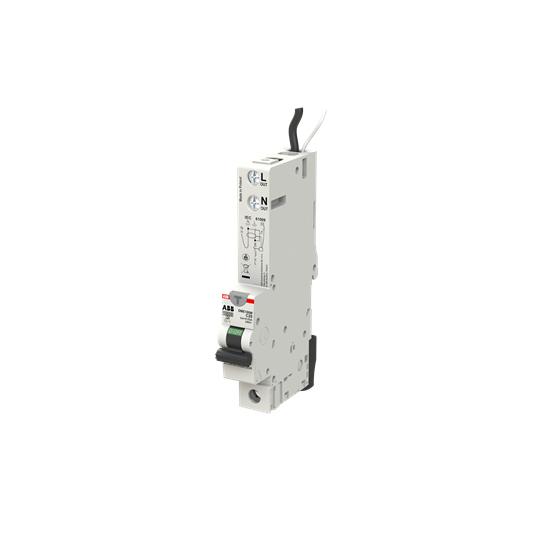

ABB DME100MC20A30 RCBO 10kA 1P+N 20A C CURVE TYPE A 30mA LONG BODY
