Product Code: E65AM60T250

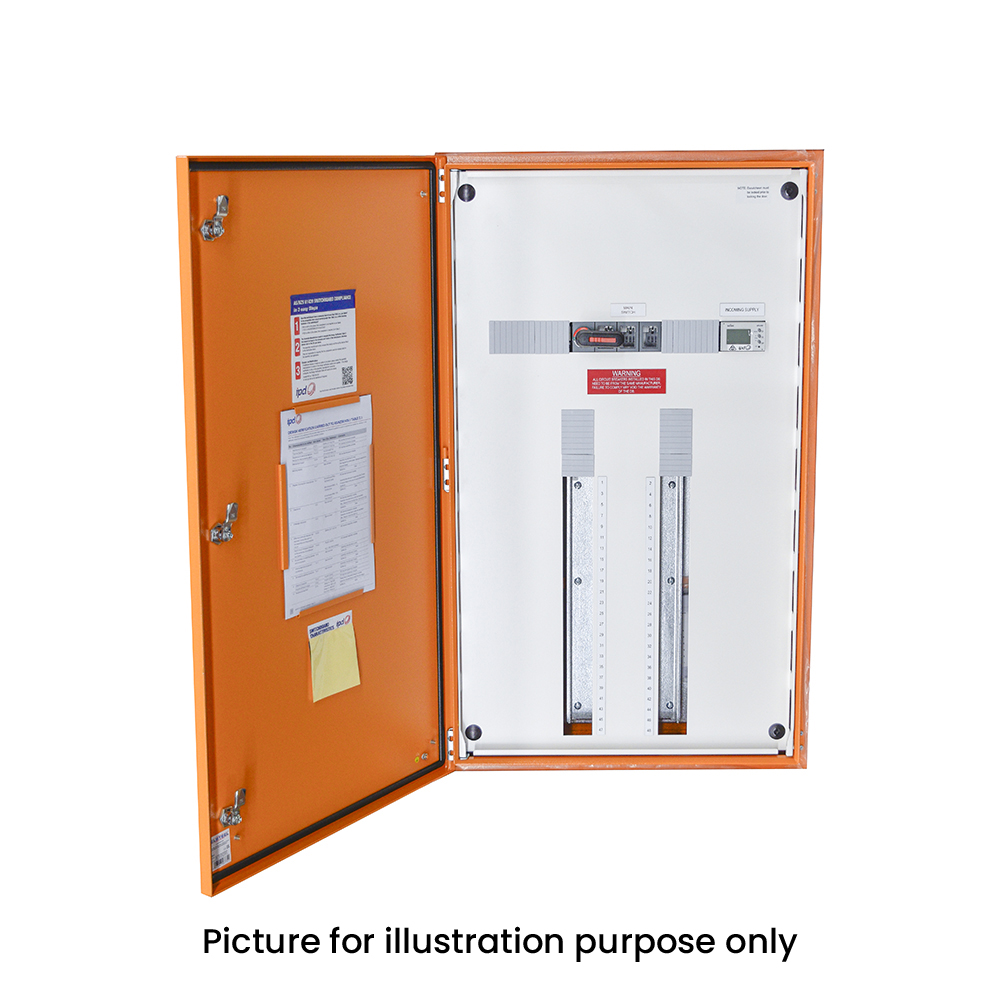

Evolution distribution boards are specifically designed for System pro M S200 range protection devices. These boards are constructed using 1.6mm Mild Steel in an eye-catching RAL2000 orange colour. With an IP65 rating, they are suitable for outdoor applications. The enclosure of the distribution board includes several features such as an OT250 LBS, Diris A10 kWh meter, Full Gland Plate Top & Bottom, 60P encapsulated chassis, metal locks, and a hinged escutcheon. The dimensions of the board are 1200H x 600W x 200Dmm.

Colour	Orange, RAL2000
No. of Locks	3
Material	Mild Steel
Brand	IPD
No. of CT Meters	1
No. of Poles	60P
Rated Current of Main Switch (A)	250
Dimensions (mm)	1200H x 600W x 200D
DIN Accessory Spaces	11
Type of Main Switch	LBS
Degree of Protection	IP65

Evolution Shield – IP65

IPD E65AM60T250 DB 60P IP65 ORANGE WITH SINGLE CT METER

Product Code: E65AM60T250
