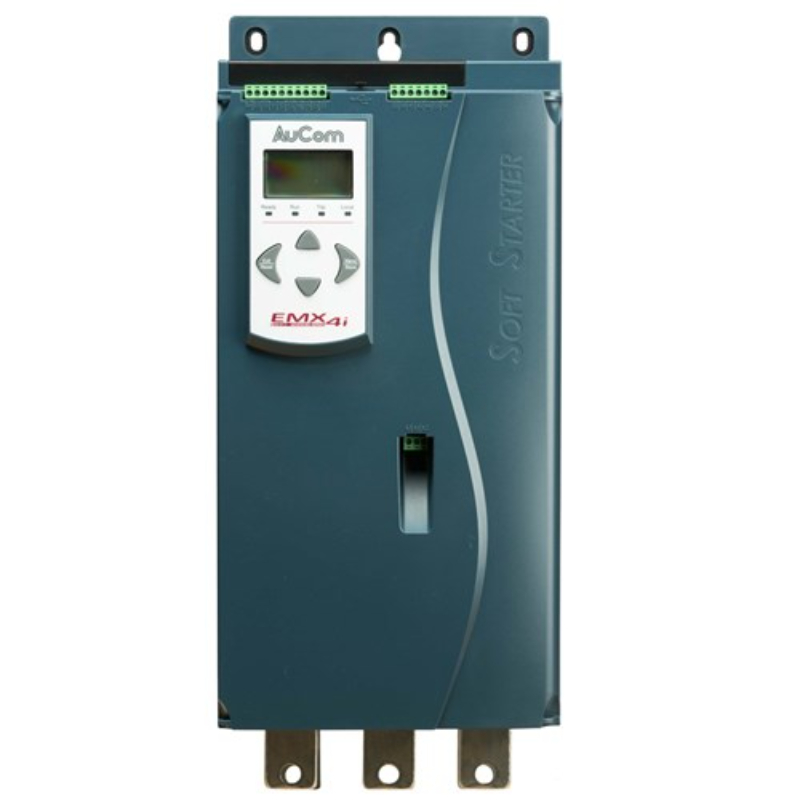

AuCom EMX4i0229BV5C1H SOFT STARTER EMX4i 229A 200-525VAC, CONTROL 110/240VAC

The EMX4i is an advanced smart soft starter designed for in-line installation. It features an internal bypass and has a frame size of S2 with an IP00 rating. The current ratings vary depending on the load, with light load at 229A, medium load at 194A, heavy load at 157A, and severe load at 124A. The supply voltage range for the EMX4i is between 200V and 525V AC, while the control voltage is either 110V or 240V AC. Motor control features include constant current and current ramp start, coast to stop and TVR stop, XLR-8 adaptive control starting/stopping, DC brake, soft brake, kickstart, soft trip, jog (forward and reverse), and inside delta (6 wire) control. The soft starter also offers motor protection for various conditions such as motor thermistor, current imbalance, under/over current, phase sequence, phase loss, and power loss. Additional features of the EMX4i include emergency run mode with real-time performance graphs and run simulation capabilities. It also has SCR fail power through operation and daily on/off scheduling for simplified management. For advanced functionality, the EMX4i can support an I/O smart card or a communication expansion card with a remote keypad connector. Alternatively, it can be used with a dedicated keypad connector card. The soft starter also includes a USB port for easy parameter upload and download along with data logging capabilities.
