Product Code: ML30.102

This product features a wide-range input of 100-240V, ensuring compatibility withVarious power sources. With an efficiency of up to 84%, it operates efficiently and minimizes energy waste. The low output ripple ensures stable and clean power delivery. It is NEC Class 2 Listed, meeting safety standards for electrical equipment. The product can provide full output power in temperatures ranging from -10 to +60°C, making it suitable for different environments. Additionally, the quick-connect spring-clamp terminals allow for easy and secure connections.

Brand	PULS
AC Input Type	Wide-range
Conformal Coating	No
Connection Type	Spring clamps
Country of Origin	China / Czech Republic
Customs Tariff Number	85044083
Degree of Protection	IP20
Derating	0.8 W/°C
Derating Temperature (°C)	> +60
Dimensions (mm)	45W x 75H x 91D
E Classification	E-CS01
Efficiency	84.00%
External Input Fuse Recommendation	B-10 A / C-6 A
Family	MiniLine
Input Inrush Current (A)	17 / 35
Input Inrush Current Limitation	NTC
Input Voltage Range AC (V)	100-240
Input Voltage Range DC (V)	110-300
Integrated Decoupling Function	No
Maximum Input Voltage DC (V)	300
Maximum Ripple and Noise Voltage (mVpp)	10
Minimum Input Voltage DC (V)	110
Mounting Type	DIN Rail
Output Current Range (A)	3 - 2.5
Output Power (W)	30
Output Voltage (V)	10-12
Power Factor	0.53
Power Loss (W)	5.8
Range	MiniLine
Rated Current (A)	3
Series	ML series
Special Application	Hazardous location
Standards and Approvals	Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, EU Declaration of Conformity, IEC 60950 CB Scheme, UL 508 Canada, UL 508 USA, UL 1310 NEC Class 2, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Use In Crosslinking	Yes
Warranty Period (Months)	36
Weight (g)	250

Industrial Power Supplies

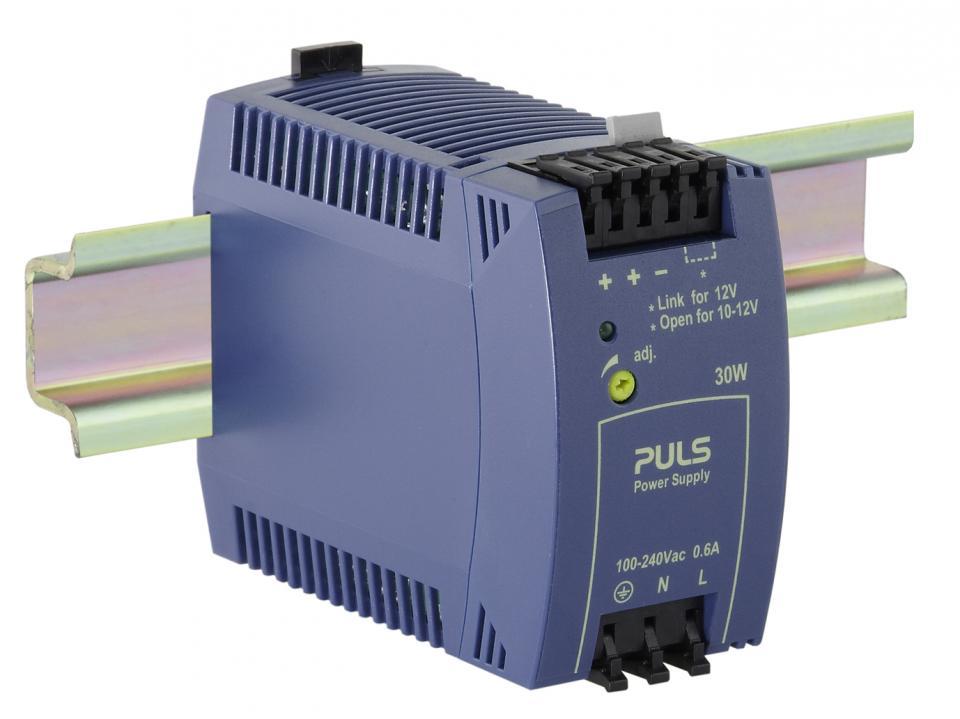

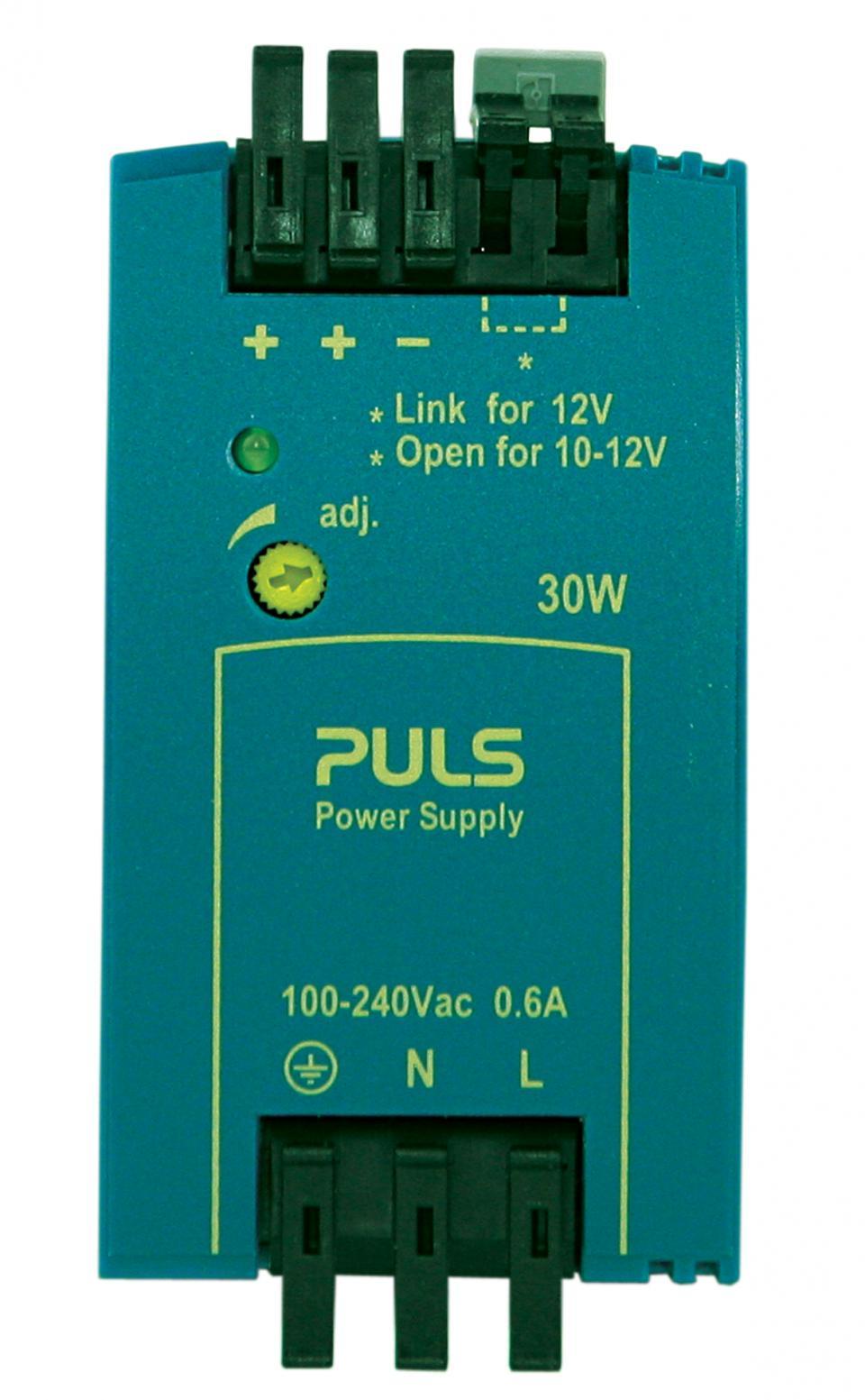

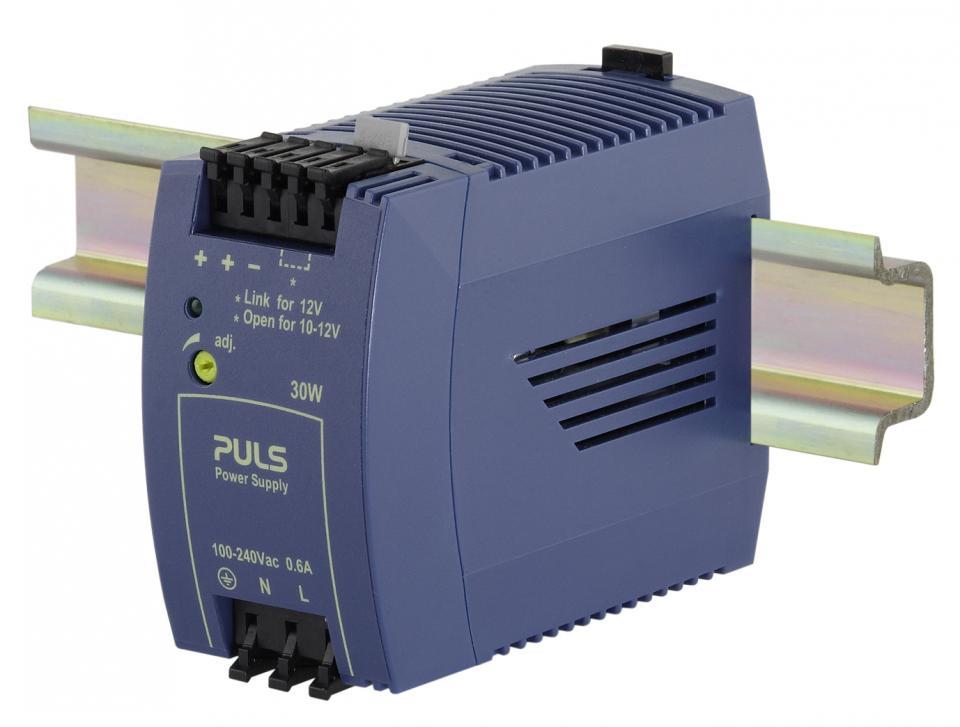

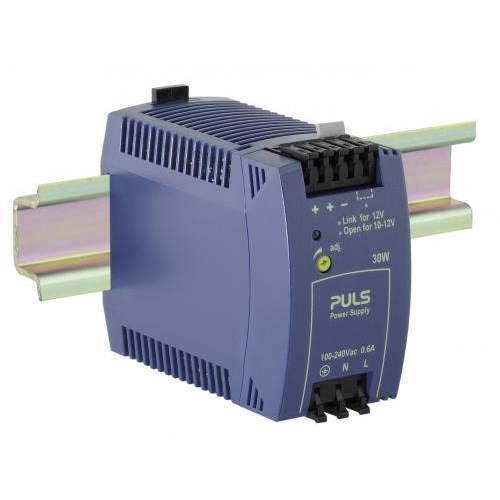

PULS DIN RAIL POWER SUPPLY 1 PHASE 12VDC 3A 30W ML30.102

Product Code: ML30.102

Technical Specifications
