Product Code: ML50.109

This product features a wide-range input of 100-240V, making it suitable forVarious power sources. It also has a DC-OK signal output, providing reliable feedback on the status of the device. The product is conformally coated, ensuring protection against environmental factors such as moisture and dust. It is NEC Class 2 Listed, meeting safety standards for electrical equipment. With full output power available between -10 and +60°C, this product can operate effectively in a wide temperature range. Additionally, it is equipped with quick-connect spring-clamp terminals for easy installation and maintenance.

Conformal Coating	Yes
Derating Temperature (°C)	> +60
Brand	PULS
Series	ML series
Range	MiniLine
Customs Tariff Number	85044083
Country of Origin	Czech Republic
E Classification	E-CS01
Warranty Period (Months)	36
Mounting Type	DIN Rail
AC Input Type	Wide-range
Connection Type	Spring clamps
DC-OK Signal	Yes
Derating	1.3 W/°C
Efficiency	88.40 % / 89%
External Input Fuse Recommendation	B-10 A / C-6 A
Family	MiniLine
Input Inrush Current (A)	17 / 35
Input Inrush Current Limitation	NTC
Input Voltage Range AC (V)	100-240
Input Voltage Range DC (V)	110-300
Integrated Decoupling Function	No
Maximum Input Voltage DC (V)	300
Maximum Ripple and Noise Voltage (mVpp)	50
Minimum Input Voltage DC (V)	110
Output Current Range (A)	2.1 - 1.8
Output Power (W)	50
Output Voltage (V)	24-28
Power Factor	0.56/ 0.52
Rated Current (A)	2.1
Special Application	Hazardous location, Semiconductor
Dimensions (mm)	45W x 75H x 91D
Use In Crosslinking	Yes
Weight (g)	240
Degree of Protection	IP20
Standards and Approvals	Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, EU Declaration of Conformity, IEC 60950 CB Scheme, SEMI F47, UL 508 Canada, UL 508 USA, UL 1310 NEC Class 2, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity

Industrial Power Supplies

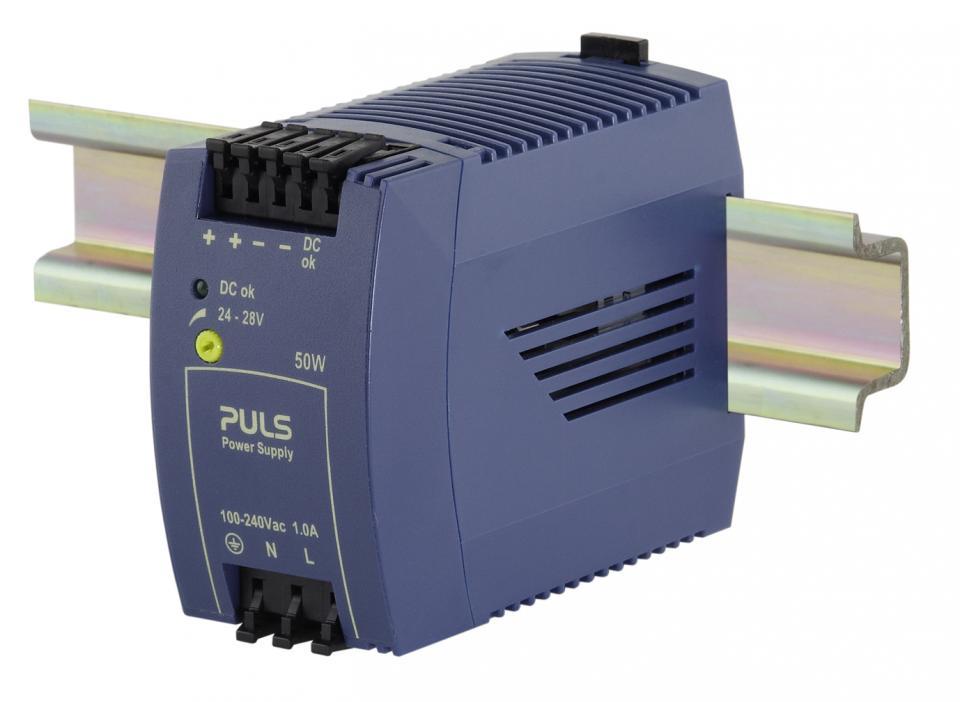

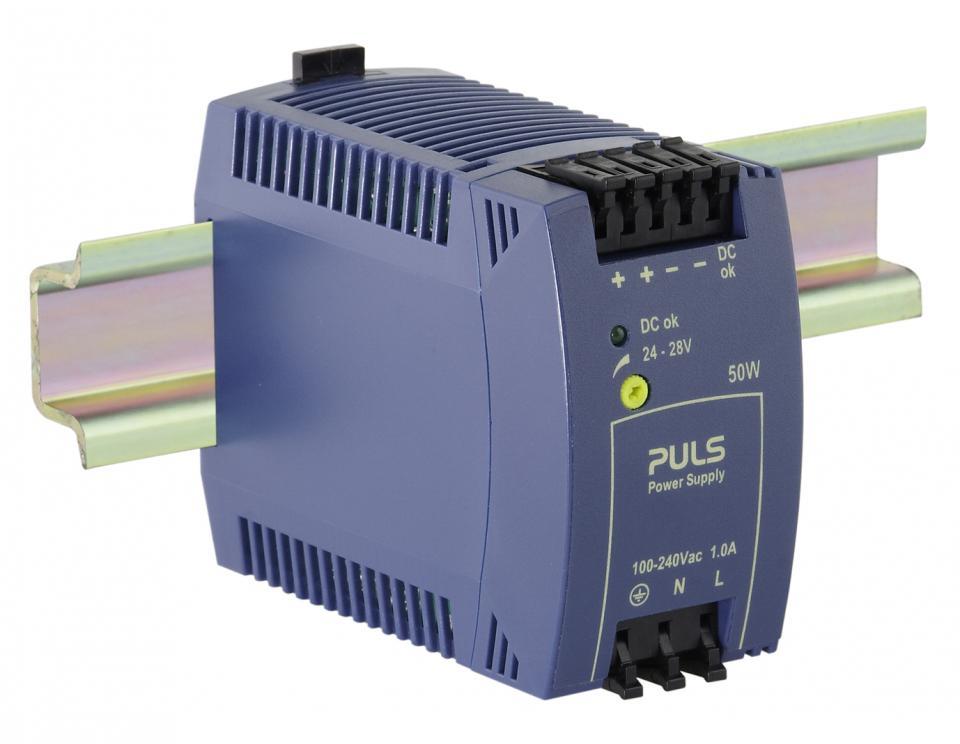

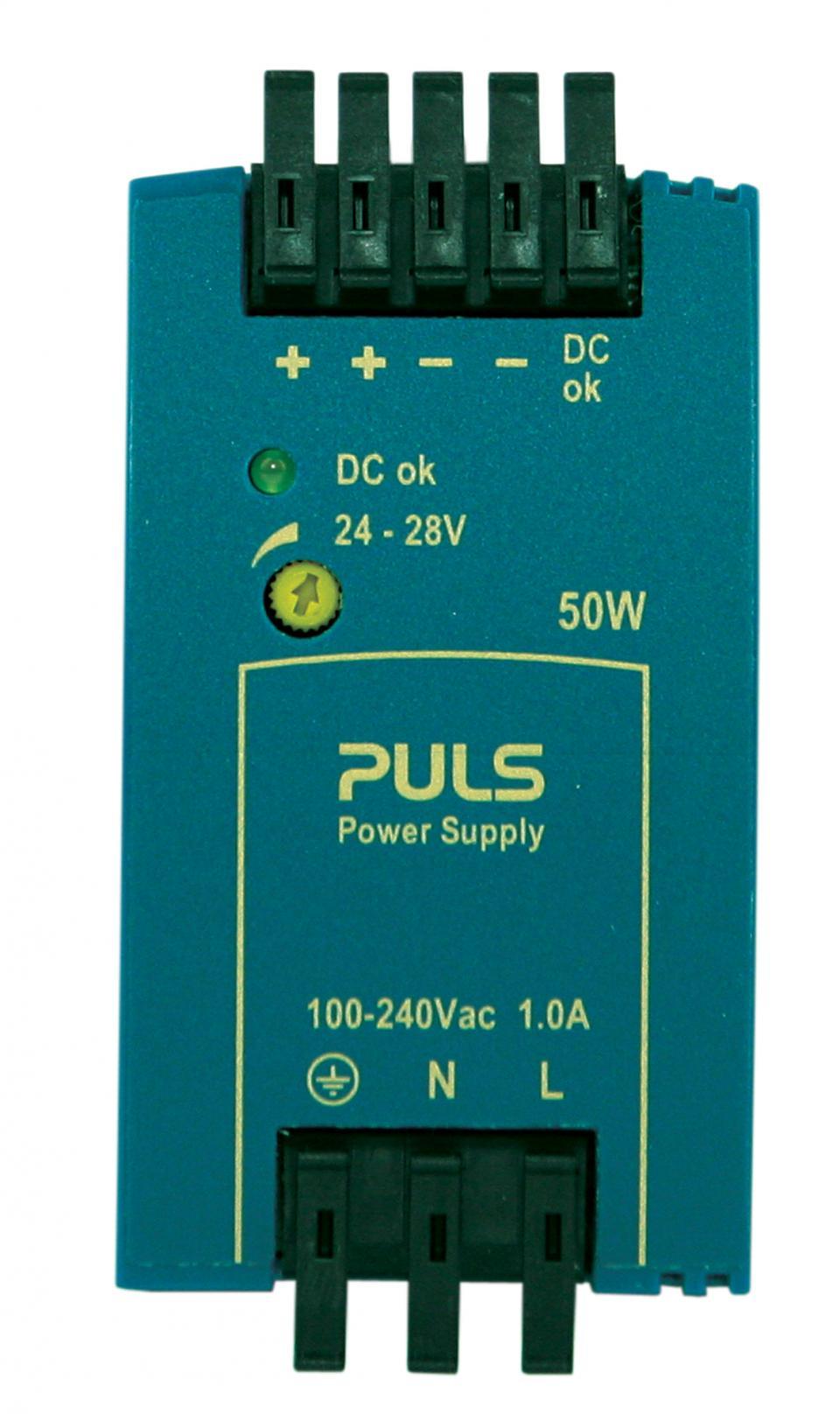

PULS DIN RAIL POWER SUPPLY 1 PHASE 24VDC 2.1A 50W ML50.109

Product Code: ML50.109
