Brand	PULS
Conformal Coating	No
Connection Type	Screw terminals
Country of Origin	China
Customs Tariff Number	85044083
DC-OK Signal	Yes
Degree of Protection	IP20
Derating	8 W/°C
Derating Temperature (°C)	+55 to +70
Dimensions (mm)	49W x 124H x 124D
E Classification	E-CS01
Efficiency	95.70%
External Input Fuse Recommendation	B-10 A / C-6 A
Family	PIANO
Input Inrush Current (A)	26
Input Inrush Current Limitation	NTC
Input Voltage Range AC (V)	200-240
Integrated Decoupling Function	No
Maximum Ripple and Noise Voltage (mVpp)	100
Mounting Type	DIN Rail
Operational Temperature Range (°C)	-25 to 70
Output Current Range (A)	20 - 17.1
Output Power (W)	480
Output Voltage (V)	24-28
Power Factor	0.99
Power Loss (W)	21.6
Range	PIANO
Rated Current (A)	20
Series	PIC series
Standards and Approvals	EU Declaration of Conformity, IEC 61010-2-201 CB Scheme, IEC 62368-1 CB Scheme, Korea Certification, UL 61010-2-201 Canada, UL 61010-2-201 USA
Use In Crosslinking	Yes
Warranty Period (Months)	36
Weight (g)	620

Industrial Power Supplies

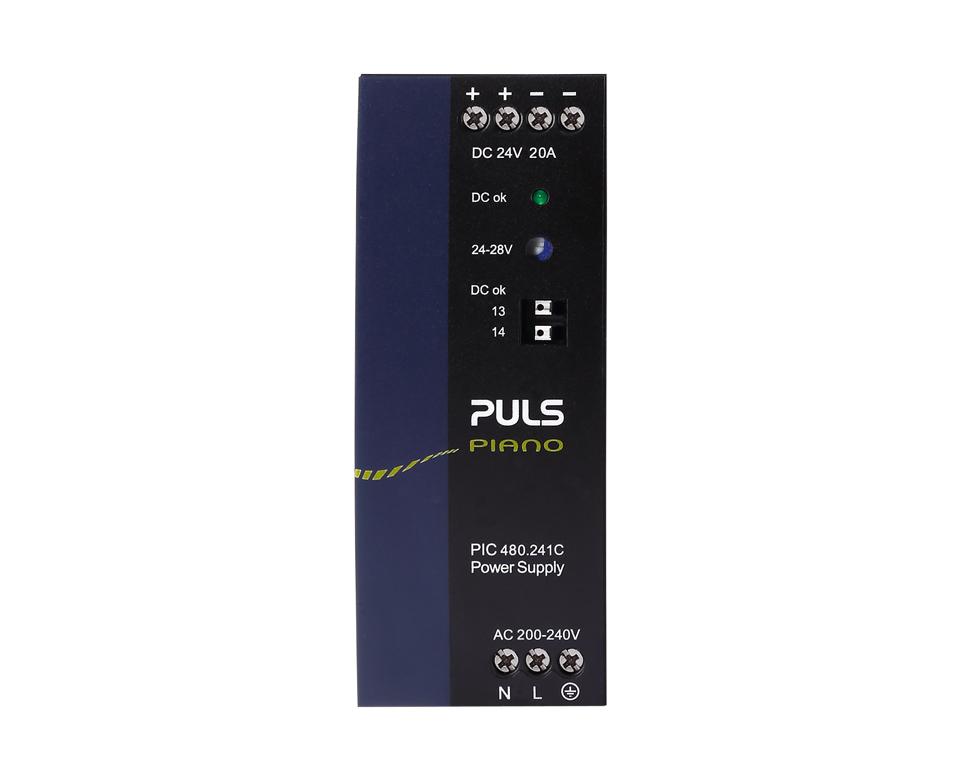

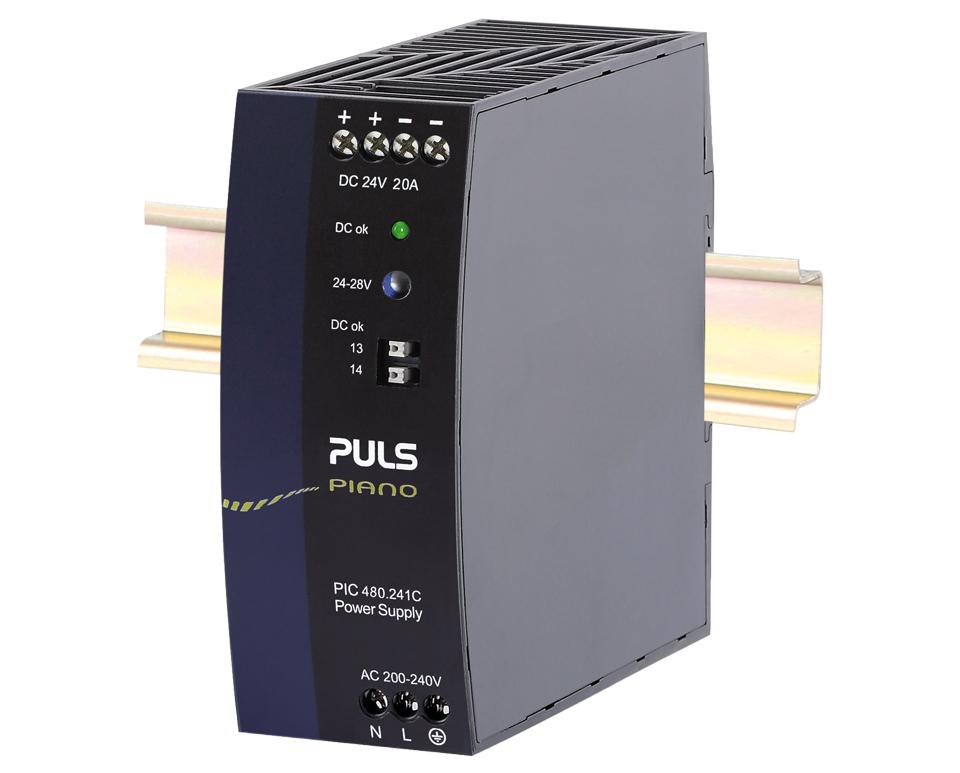

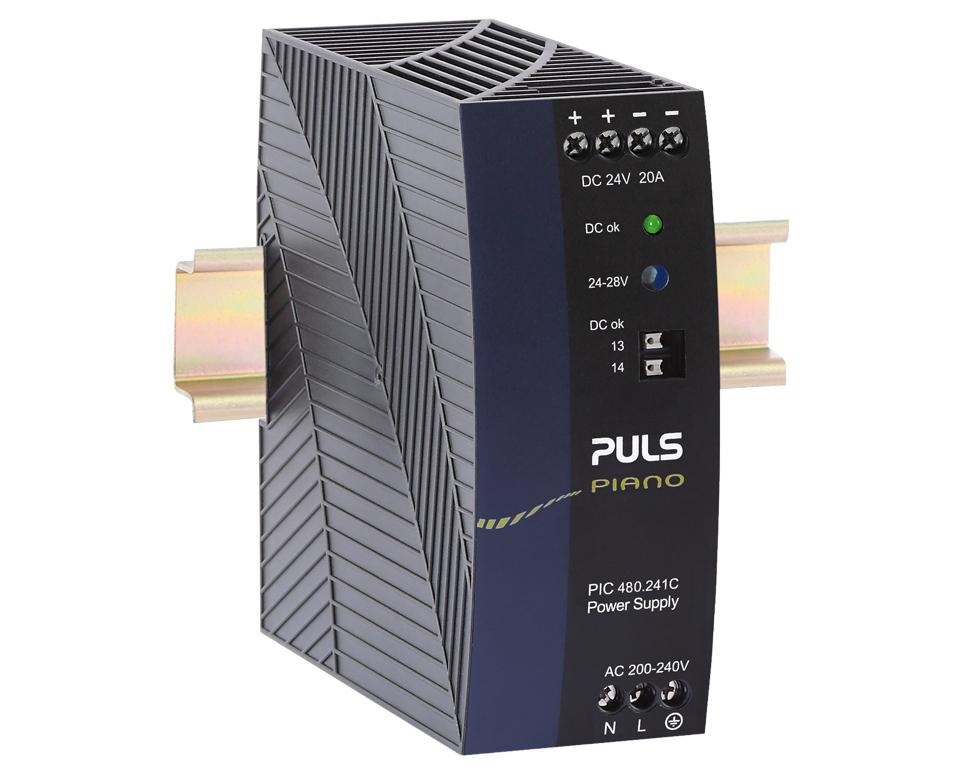

PULS POWER SUPPLY 1 PHASE 24V DC 20A PIC480.241C
