Product Code: PISA11.410

This product features one input and four current controlled outputs, ensuring a reliable supplyVoltage for critical loads, even in the event of a fault. It also provides protection against overload for small cable sizes. With its hassle-free turn-on capability, it can easily handle loads with large input capacitors. The product operates within a wide temperature range of -25°C to +70°C. Additionally, it offers an on/off function for the outputs and has a compact design with a width of only 45mm. Furthermore, it includes a remote monitoring and control function.

Brand	PULS
Conformal Coating	No
Connection Type	Screw terminals
Country of Origin	China / Czech Republic
Customs Tariff Number	85363010
DC Input Current at No Load	43
Degree of Protection	IP20
Dimensions (mm)	45W x 75H x 91D
E Classification	E-CS06
Family	PISA
Input Voltage Range DC (V)	24
Maximum Input Voltage DC (V)	30
Maximum Input Voltage Protection Level DC (V)	21.8
Maximum Output Current Limitation (A)	30
Minimum Input Voltage DC (V)	18
Minimum Input Voltage Protection Level DC (V)	21.0
Minimum Output Current Limitation (A)	20.5
Mounting Type	DIN Rail
Nominal Output Current 'a' (A)	10
Nominal Output Current 'b' (A)	10
Nominal Output Current 'C' (A)	10
Nominal Output Current 'd' (A)	10
Operational Temperature Range (°C)	-25 to 70
Output Voltage (V)	24-28
Power Loss No Load (W)	1
Range	PISA
Rated Current (A)	20
Required DC Input Voltage To Switch On Outputs (V)	21.4
Series	PISA11 series
Shutdown Time at Short-circuit (ms)	8.0
Special Application	Hazardous location, Marine
Standards and Approvals	ATEX EN 60079, Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, EU Declaration of Conformity, IEC 60950 CB Scheme, Marine ABS, Marine DNV, UL 508 Canada, UL 508 USA, UL 2367, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Turn-on Delay Of Outputs (ms)	270
Use In Crosslinking	Yes
Voltage Drop (mV)	197
Warranty Period (Months)	36
Weight (g)	120

Industrial Power Supplies

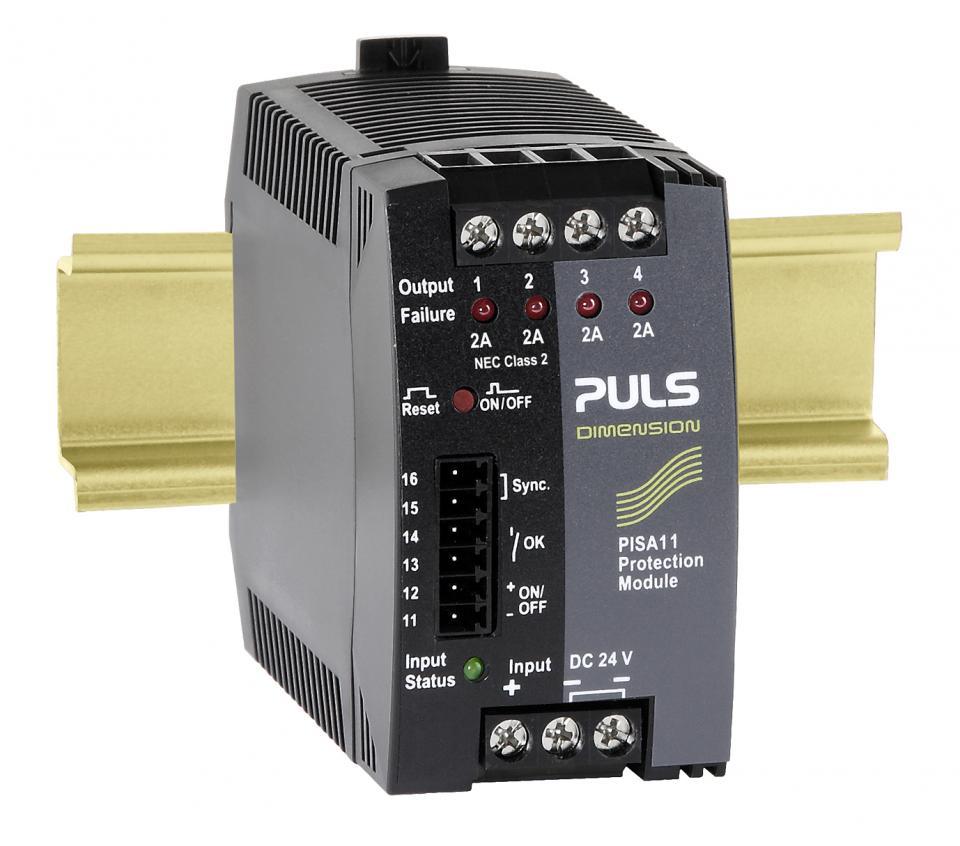

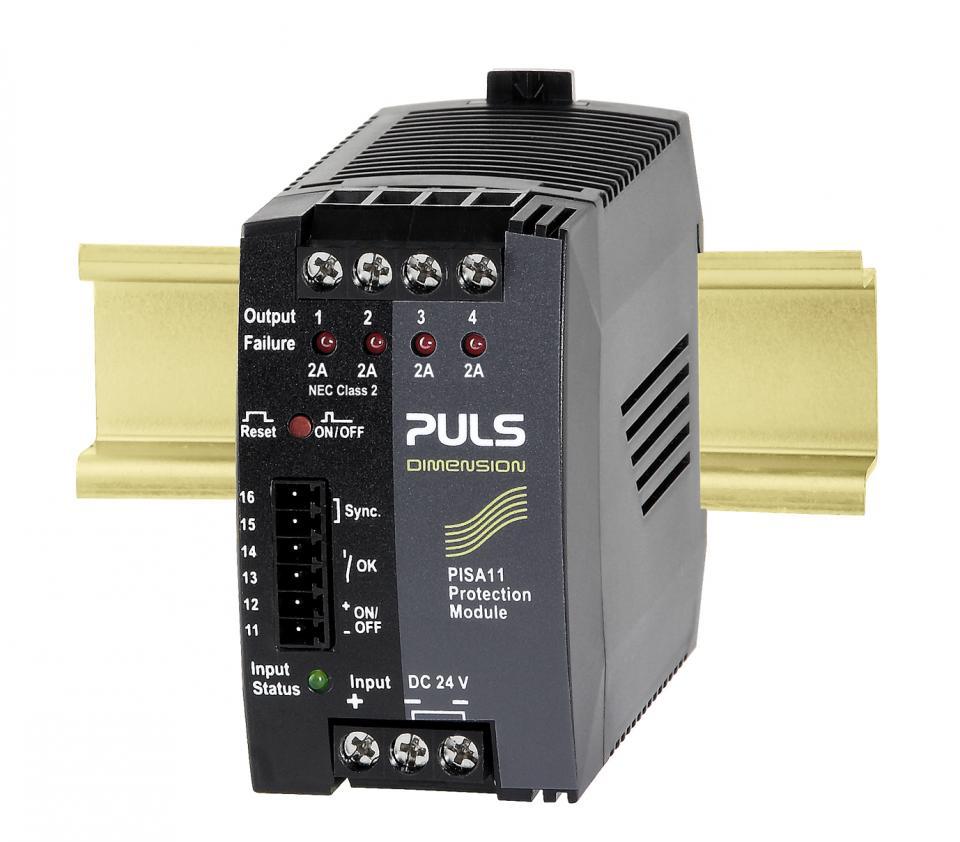

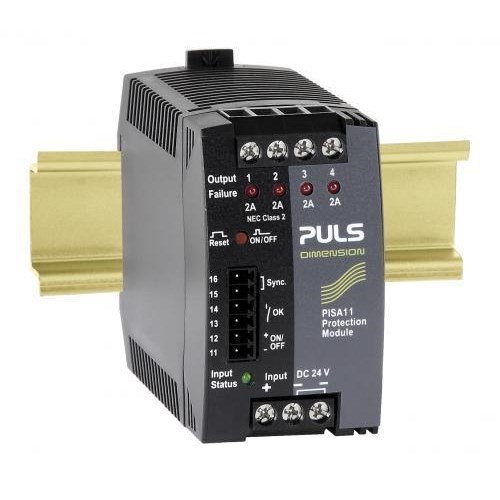

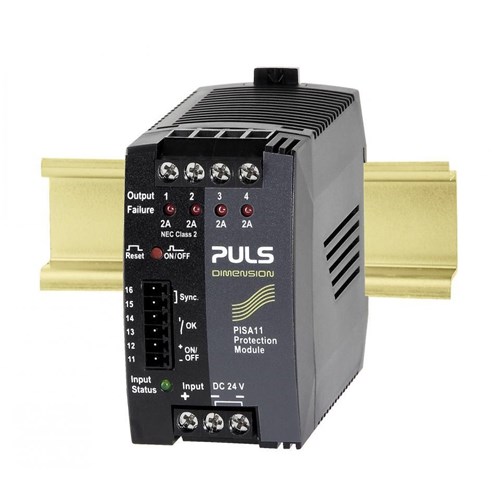

PULS ELECTRONIC CIRCUIT BREAKER 24VDC 4 X 10A PISA11.410

Product Code: PISA11.410
