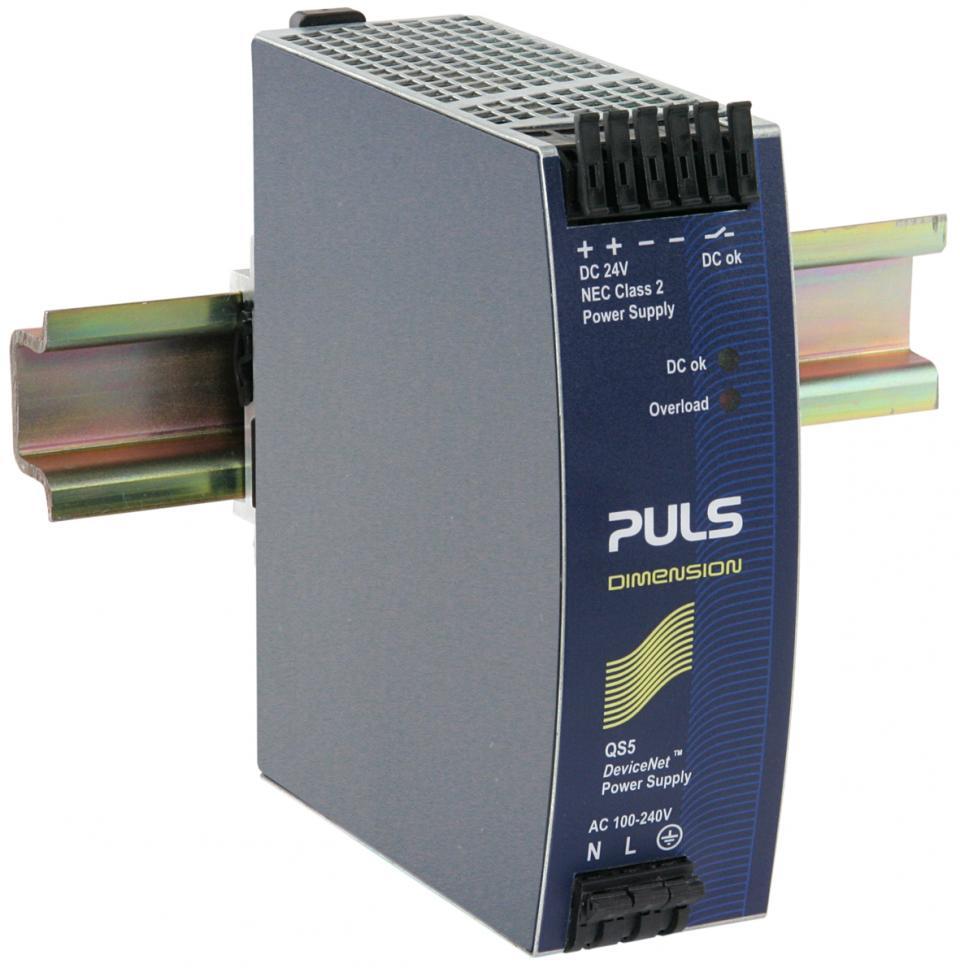

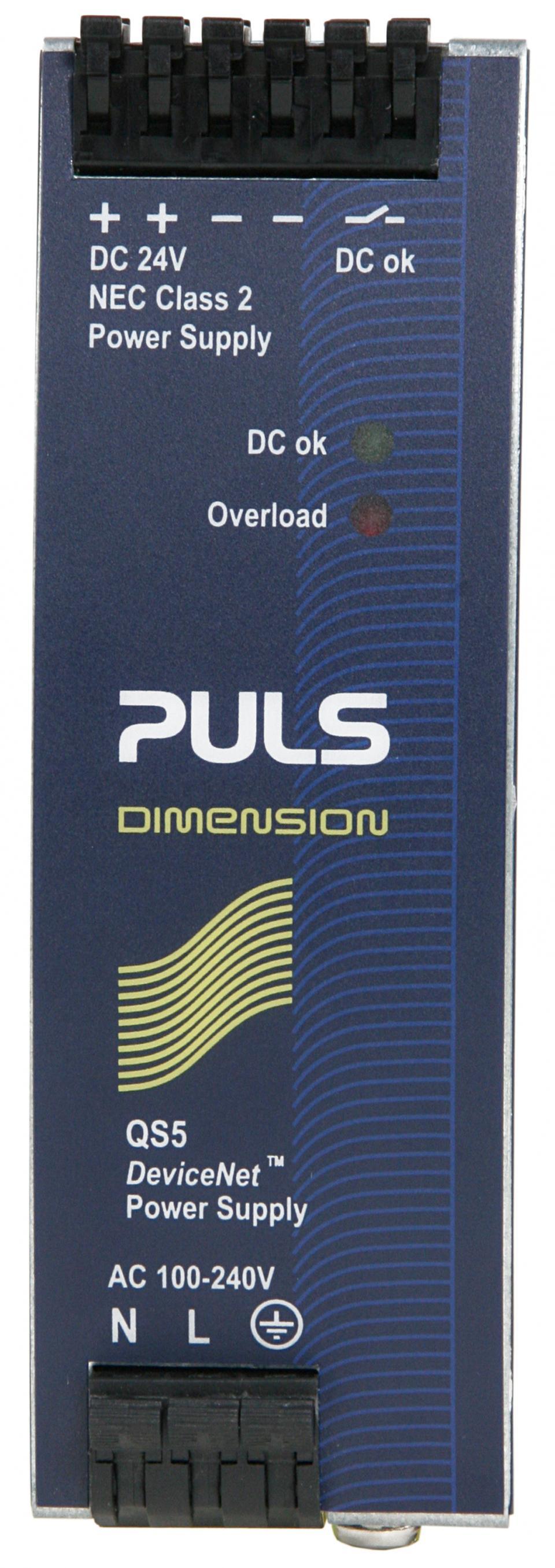

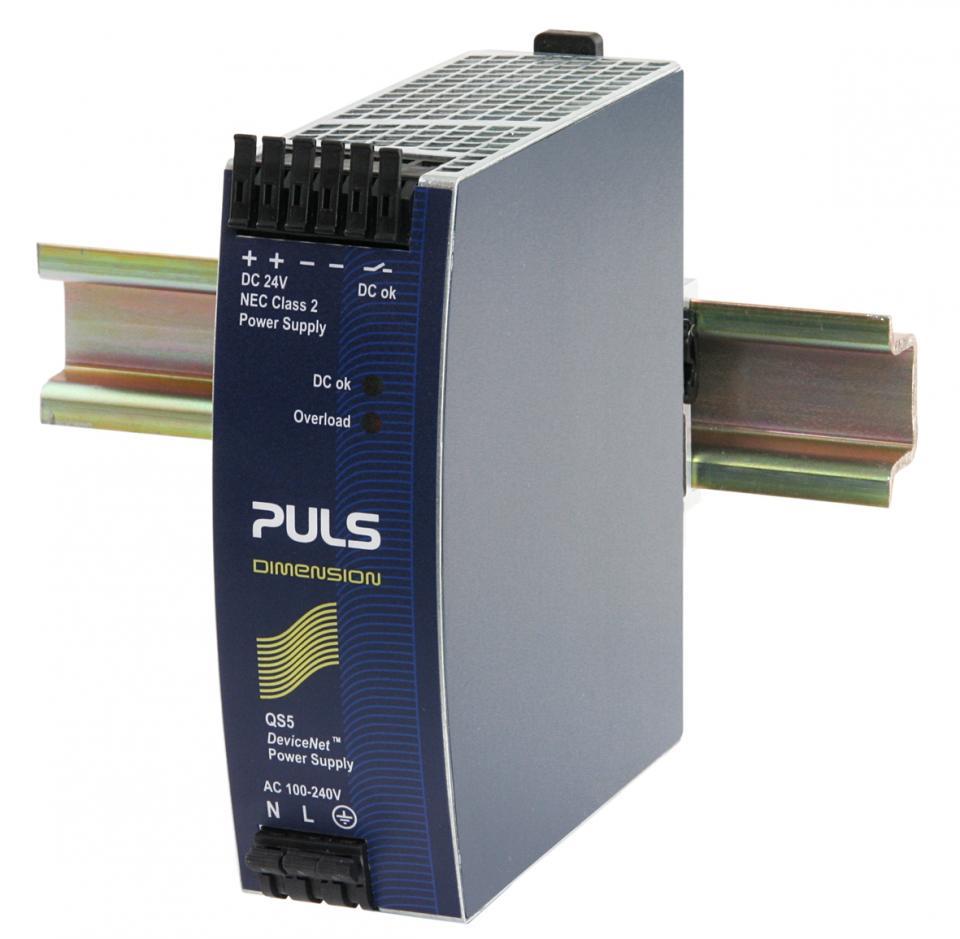

PULS POWER SUPPLY, 1 PHASE, 24V, 3.8A, NEC CLASS 2, QS5.DNET

Product Code: QS5.DNET

The product features a wide-range input of 100-240V, ensuring compatibility withVarious power sources. It is equipped with Active PFC technology, which enhances power efficiency up to 92%. The product has obtained SEMI-F47-200 approval and is listed under NEC Class 2. Additionally, it is approved for use with DeviceNet. The device operates at full output power within a temperature range of -25°C to +60°C. It is designed with spring-clamp terminals for easy installation and includes a DC-OK contact feature.

Technical Specifications

Conformal Coating No
Derating Temperature (°C) > +60
Brand PULS
Series Q series
Range DIMENSION
Customs Tariff Number 85044083
Country of Origin China / Czech Republic
E Classification E-CS01
Warranty Period (Months) 36
Mounting Type DIN Rail
Operational Temperature Range (°C) -25 to 70
AC Input Type Wide-range
Connection Type Spring clamps
DC-OK Signal Yes
Derating 2 W/°C
Efficiency 92.00%
External Input Fuse Recommendation B-6 A / C-3 A
Family DIMENSION
Harmonic Correction Active
Input Inrush Current (A) 9 / 11
Input Inrush Current Limitation Active
Input Voltage Range AC (V) 100-240
Input Voltage Range DC (V) 110-300
Integrated Decoupling Function No
Maximum Input Voltage DC (V) 300
Maximum Ripple and Noise Voltage (mVpp) 50
Minimum Input Voltage DC (V) 110
Output Current Range (A) 3.8 - 3.8
Output Power (W) 91
Output Voltage (V) 24
Power Loss (W) 7.9
Rated Current (A) 3.8
Special Application Hazardous location, Marine, Semiconductor, DeviceNet
Dimensions (mm) 40W x 124H x 117D
Use In Crosslinking Yes
Weight (g) 620
Degree of Protection IP20
Standards and Approvals Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, DeviceNet compliant, EU Declaration of Conformity, IEC 60950 CB Scheme, Marine ABS, Marine DNV, SEMI F47, UL 508 Canada, UL 508 USA, UL 1310 NEC Class 2, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
