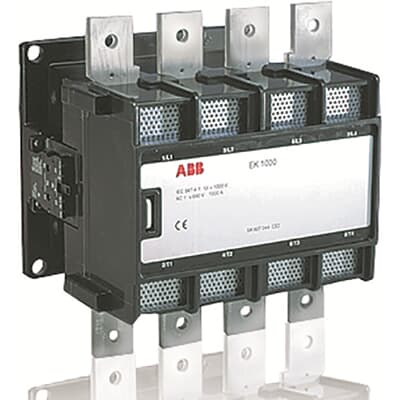

ABB SK827044-EM EK CONTACTOR 4P 1000A (AC-1) CONTROL 220-230VAC AUX 1NO+2NC

Product Code: SK827044-EM

In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Mounting Type Panel mounting
Brand ABB
Product Type EK Contactor
Auxiliary Contacts 1NO/1NC
Contacts 4NO (Main Contacts)
No. of Poles 4
Rated Control Circuit Voltage AC (V) 220-230
Rated Impulse Withstand Voltage (kV) 8
Rated Insulation Voltage (V) 1000
Rated Operational Current AC-1 690V (A) 1000
Rated Operational Voltage AC (V) 1000
Terminal Type Main Circuit: Bars
Dimensions (mm) 272H x 225.5D x 270W
Degree of Protection Coil Terminals - IP20

Description

EK Contactor 4P, Rated operational current (AC1) at 690V 1000A. control voltage is 220...230V AC. Built in auxiliary contacts 1NO+2NC, Built-in surge suppression. Controlling non-inductive or slightly inductive loads up to 1000V AC. Panel mounting
