W66 Industrial IP66 Switchgear

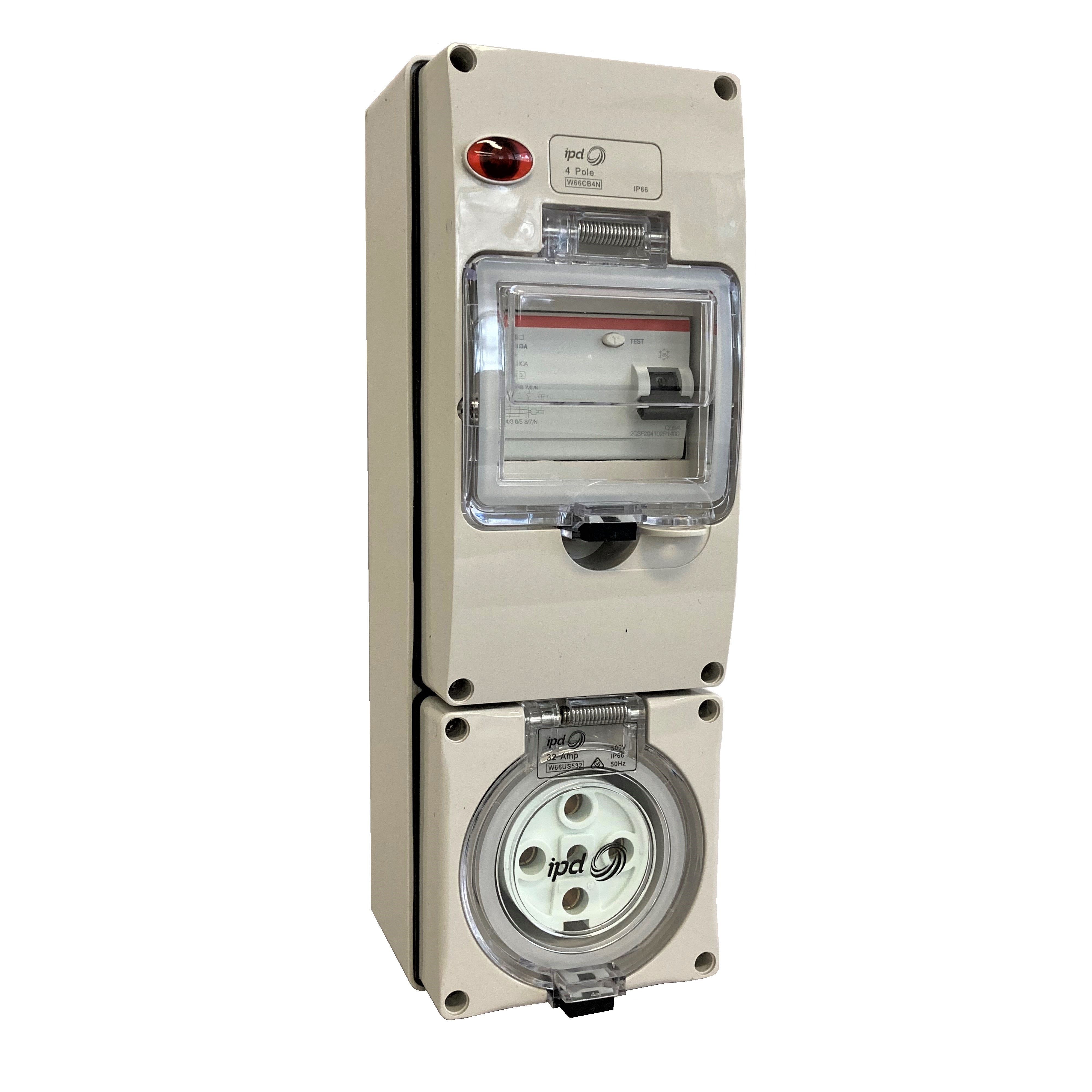

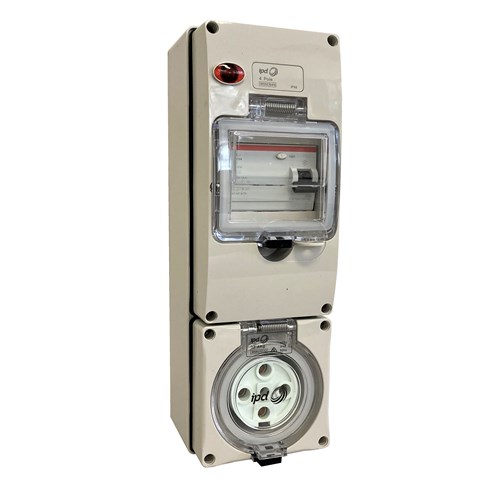

IPD RCD TYPE A PROTECTED OUTLET KIT 3 PHASE 5 PINS 32A 415V, IP66 W66US532RCA

Product Code: W66US532RCA

This outlet kit is designed for three-phase power systems and features a 30mA RCD Type A protection. It has 5 pins and an IP66 rating, ensuring it is dust-tight and protected against powerful water jets. The kit includes a 3 M base for easy installation. With a current rating of 32A and a voltage rating of 415V, this outlet kit is suitable for various industrial applications.

Technical Specifications

Cover Style Silicone Gasket
Material Polycarbonate
Brand IPD
Maximum Cable Cross Section (mm²) 16
Back Box Included Yes
Gland Entries 1 x M32, 2 x M25
No. of Phases 3
No. of Pins 5
Pin Type Round
Rated Current (A) 32
Rated Residual Current (mA) 30
Rated Voltage AC/DC (V) 415
Type of Residual Current Type A
Degree of Protection IP66
Standards and Approvals IP66
