Product Code: E12N4ETG10W

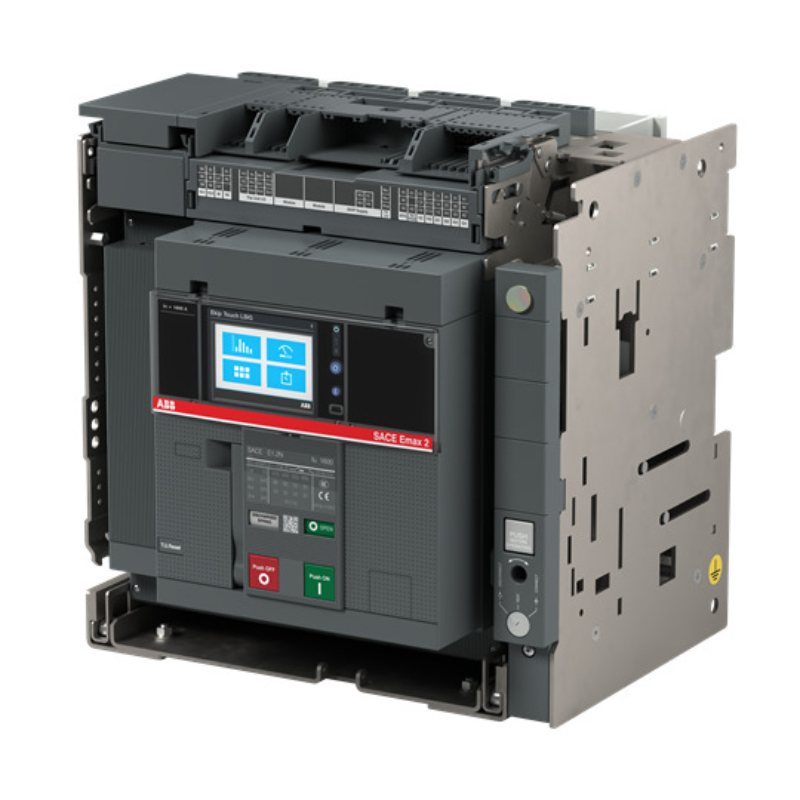

The ACB E1.2N 1000A 4P 66kA is a withdrawable circuit breaker with a current rating of 1000A. It has four poles and can handle short-circuit currents up to 66kA. The circuit breaker features an auto EKIP Touch LSIG trip unit, which provides protection against overloads and short circuits. The trip unit has different settings for different current ranges: L-I1 (400-1000A), S-I2 (600-10000A), I-I3 (1500-15000A), and G-I4 (100-1000A). The ACB also comes with HR-HR terminals, ensuring secure connections. It is a complete package that includes the WMP+FP terminal.

Version	Withdrawable
Brand	ABB
AC Voltage (V)	690
Breaking Capacity 415V AC - Icu (kA)	66
Current Rating (A)	1000
G (0.1 to 1 x In) - I4 (A)	100-1000
I (1.5 to 15 x In) - I3 (A)	1500-15000
L (0.4 to 1 x In) - I1 (A)	400-1000
No. of Poles	4P
Power Loss (W)	156
Rated Current (A)	1000
Rated Impulse Withstand Voltage (kV)	12
Rated Insulation Voltage AC (V)	1000
Rated Operational Voltage AC (V)	690
Rated Short-time Withstand Current - Icw (kA/1s)	50
Rated Uninterrupted Current - Iu (A)	1000
S (0.6 to 10 x In) - I2 (A)	600-10000
Terminal Type	HR-HR
Size of Frame	E1.2
Trip Unit	EKIP Touch LSIG
Standards and Approvals	IEC
Poles	4P
Breaking Capacity (kA)	66 @415V AC
Trip Unit - Electronic	EKIP Touch LSIG
Frame	E1.2
Icw (kA/1s) - Short-time Withstand Current Rating	50
Iu - Uninterrupted Current Rating (A)	1000
Component Type	Withdrawable
