Specifications

Version	Withdrawable
Brand	ABB
Product Type	Automatic ACB
AC Voltage (V)	690
Breaking Capacity 415V AC - Icu (kA)	100
Current Rating (A)	5000
G (0.1 to 1 x In) - I4 (A)	500-5000
I (1.5 to 15 x In) - I3 (A)	7500-75000
L (0.4 to 1 x In) - I1 (A)	2000-5000
No. of Poles	3P
Power Loss (W)	850
Rated Current (A)	5000
Rated Impulse Withstand Voltage (kV)	12
Rated Insulation Voltage AC (V)	1000
Rated Operational Voltage AC (V)	690
Rated Short-time Withstand Current - Icw (kA/1s)	100
Rated Uninterrupted Current - Iu (A)	5000
S (0.6 to 10 x In) - I2 (A)	3000-50000
Terminal Type	HR-HR
Size of Frame	E6.2
Trip Unit	EKIP Touch LSIG
Standards and Approvals	IEC
Poles	3P
Breaking Capacity (kA)	100 @415V AC
Trip Unit - Electronic	EKIP Touch LSIG
Frame	E6.2
Icw (kA/1s) - Short-time Withstand Current Rating	100
Iu - Uninterrupted Current Rating (A)	5000
Component Type	Withdrawable

Description

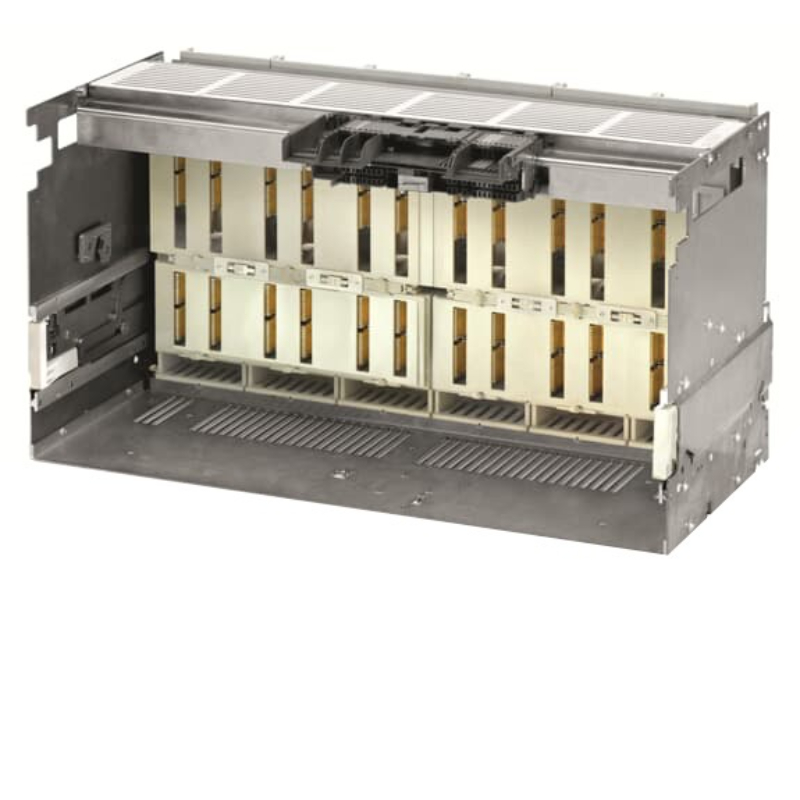

The ACB E6.2H is a 3P circuit breaker with a rated current (In) of 5000A. It has an Icu rating of 100kA at 415V AC and a rated short-time withstand current Icw (1s) of 100kA. The circuit breaker features a withdrawable auto EKIP Touch LSIG trip unit with horizontal rear terminals. It also includes a shunt closing release that operates on 110-120V AC/DC. The ACB E6.2H comes complete with WMP+FP components.

Documents

IPD Product Catalogue

IPD Product Catalogue V17

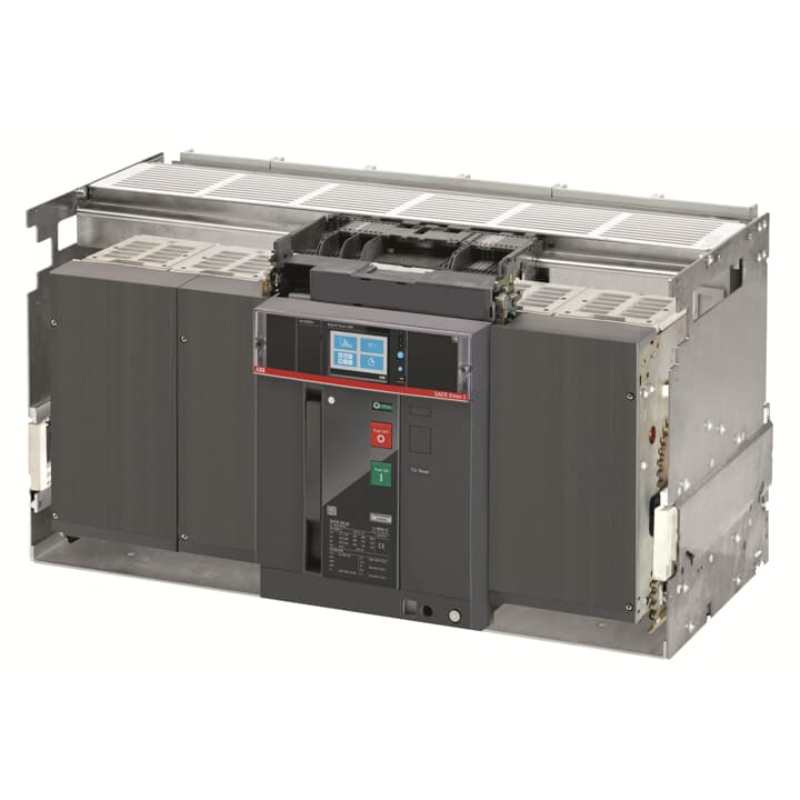

ABB E6H350WC120K ACB E6.2H In=5000A 3P 100kA W/D EKIP TOUCH LSIG C/W FIXED PART, SHUNT CLOSING 110-120VAC/DC

Product Code: E6H350WC120K
