Air Circuit Breakers

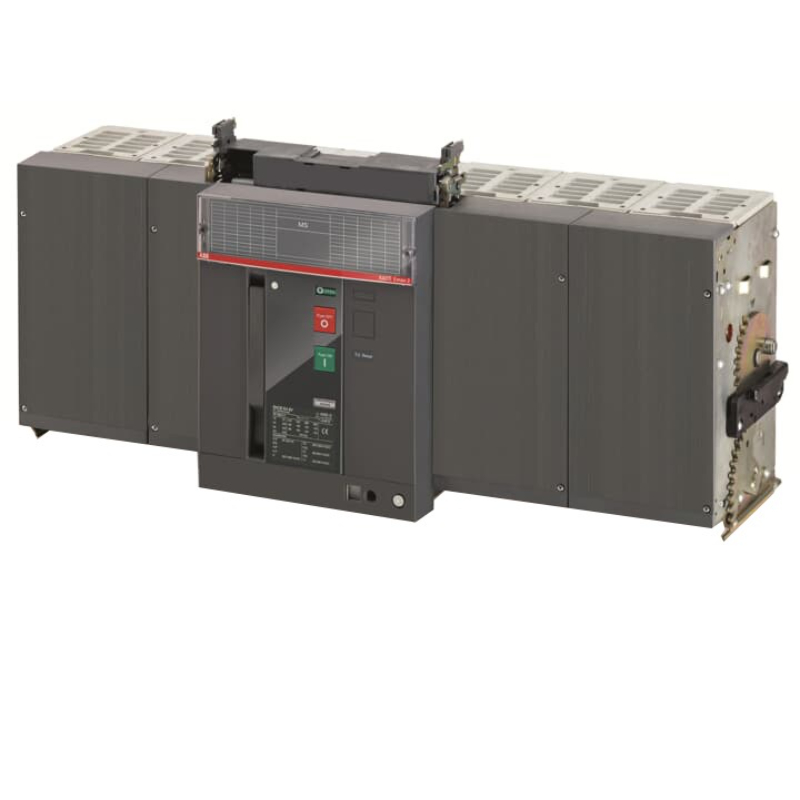

ABB E62H4NA63W ACB E6.2H 4P 100KA WITHDRAWABLE 1600A NON AUTO

Product Code: E62H4NA63W

The ACB E6.2H is a 6300A, 4P circuit breaker with a 100kA breaking capacity. It features a withdrawable design and does not have automatic operation. The terminal is HR-HR and the product comes complete with WMP+FP accessories.

Technical Specifications

Version Withdrawable
Brand ABB
AC Voltage (V) 690
Breaking Capacity 415V AC - Icu (kA) 100
Current Rating (A) 6300
No. of Poles 4P
Power Loss (W) 1550
Rated Current (A) 6300
Rated Impulse Withstand Voltage (kV) 12
Rated Insulation Voltage AC (V) 1000
Rated Operational Voltage AC (V) 690
Rated Short-time Withstand Current - Icw (kA/1s) 100
Rated Uninterrupted Current - Iu (A) 6300
Terminal Type HR-HR
Size of Frame E6.2
Standards and Approvals IEC
Poles 4P
Breaking Capacity (kA) 100 @415V AC
Frame E6.2
Icw (kA/1s) - Short-time Withstand Current Rating 100
Iu - Uninterrupted Current Rating (A) 6300
Component Type Withdrawable
