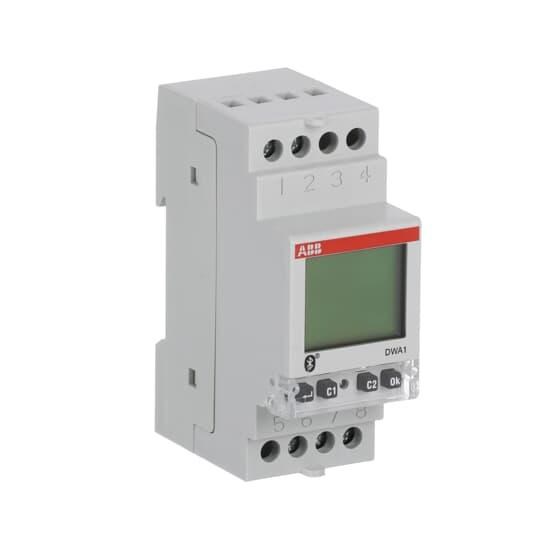

ABB DIGITAL TIME SWITCH 1 CHANNEL ASTRO WEEKLY 1CO DWA1

Product Code: DWA1

  • - 3V Lithium 5 year backup battery - Backlight LCD display - Bluetooth communication interface
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Modules - Width 17.5 mm 2
Mounting Type DIN Rail
Operational Temperature Range (°C) -20 to +50
Brand ABB
Product Type Time Switch
Accuracy ± 0.5sec/24h
Battery Backup 5 years
Channels 1
Contacts 1CO
Function Weekly & Astro
Minimum Switching Time (s) 60
Power Consumption (W) 2
Rated Current (A) 16
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 4
Rated Supply Voltage AC/DC (V) 230V AC
Universal Supply Voltage AC (V) 230
Degree of Protection IP20

Description

The Digital Time Switch is a DIN Rail Mount device with 1 channel and Bluetooth connectivity. It features a 3V Lithium backup battery for uninterrupted operation. With its Weekly Astro functioning, it provides precise timekeeping accuracy of ± 0.5 seconds per 24 hours. The switch has 2 changeover contacts capable of handling up to 16A at 230VAC. It operates on a universal supply voltage and has a compact design with a width of 17.5mm, occupying only 2 modules of space.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
