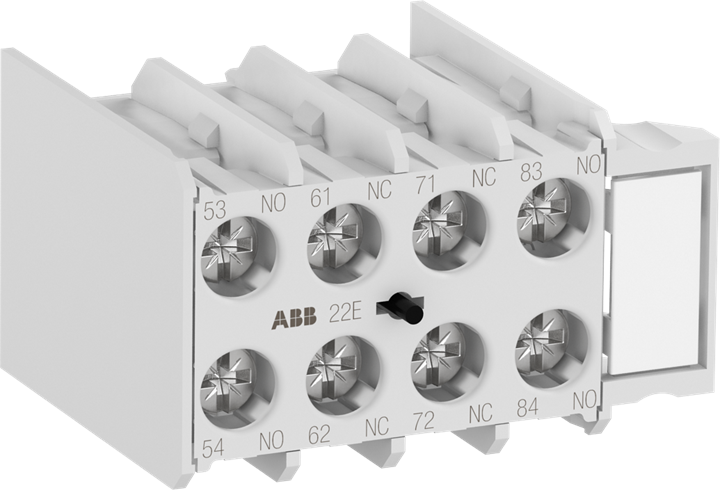

ABB MARN413AT AUXILIARY CONTACT BLOCK MARN413AT

Product Code: MARN413AT

In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Mounting Type Front Fastening
Operational Temperature Range (°C) -40 to +55
Model Clip-on
Suitable For MC1, MC2, MCR equipped with Screw terminals
Brand ABB
Product Type Accessory
Series M
Auxiliary Contacts 1NO/3NC
Connection Type Screw Connection
No. of Normally-closed Contacts 3
No. of Normally-open Contacts 1
No. of Poles 4
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 750
Rated Operational Current AC-15 230V (A) 6
Rated Operational Voltage AC (V) 690
Terminal Type Screw
Dimensions (mm) 45W x 27H x 35D
Degree of Protection IP20

Description

The MARN413AT is an auxiliary contact for front mounting with 1NO/3NC contacts and screw terminals. Auxiliary contacts are used for the operation of auxiliary circuits and control circuits. The auxiliary contact meets the requirements of EN 50005.
