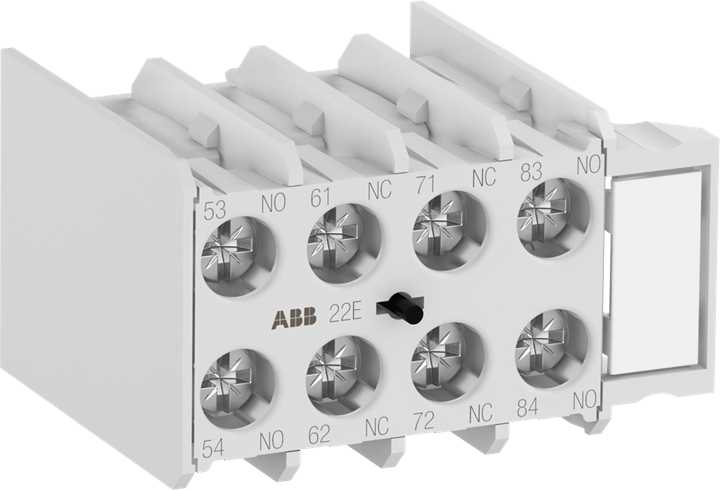

ABB MARN422AT AUXILIARY CONTACT 2NO+2NC FRONT MOUNT SUIT MC1 & MC2 (EN 50005)

Product Code: MARN422AT

In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Mounting Type Front
Operational Temperature Range (°C) -40 to +55
Suitable For MC1, MC2, MCR equipped with Screw terminals
Brand ABB
Product Type Accessory
Series M
Auxiliary Contacts 2NO/2NC
No. of Poles 4P
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 750
Rated Operational Voltage AC (V) 690
Terminal Type Screw
Dimensions (mm) 27H x 35D x 45W
Degree of Protection IP20

Description

The MARN422AT is a front-mounted auxiliary contact with 2NO/2NC contacts and screw terminals. It is designed for use in auxiliary circuits and control circuits. This auxiliary contact complies with the requirements of EN 50005.
