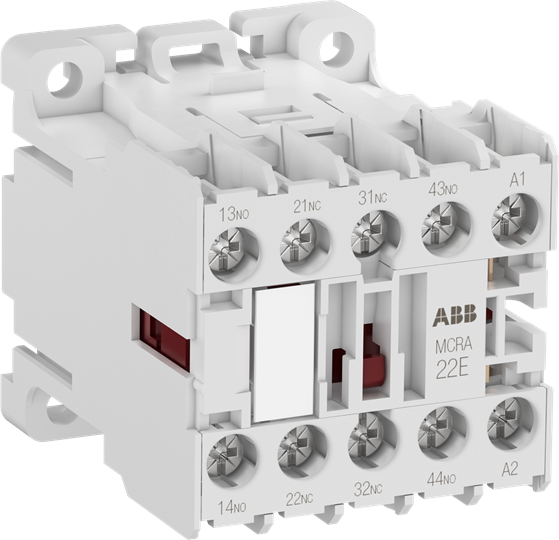

ABB MCRA022AT1 MINI CONTACTOR 4P (2NO+2NC), Ith 6A 240VAC CONTROL 24VAC

Product Code: MCRA022AT1

In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Mounting Type DIN Rail/Wall
Operational Temperature Range (°C) -40 to +55
Brand ABB
Product Type Mini Contactor Relay
Series M
Auxiliary Contacts 2NO/2NC
Mode of Operation AC
No. of Poles 4P
Power Loss (W) 0.4/pole
Rated Control Circuit Voltage AC (V) 24
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 750
Rated Operational Current AC-15 240V (A) 6
Rated Operational Voltage AC (V) 690
Short-Circuit Protective Device 10A, fuse type gG
Terminal Type Screw
Dimensions (mm) 48H x 56D x 45W
Degree of Protection IP20

Description

The MCRA022AT1 mini contactor relay is a compact 4 pole relay with screw terminals. It is designed for high performance in limited spaces. This mini contactor is commonly used in residential, commercial, and industrial applications to switch control signals up to 6 A / 240 V (AC-15). It can be mounted on walls or rails for convenience.
