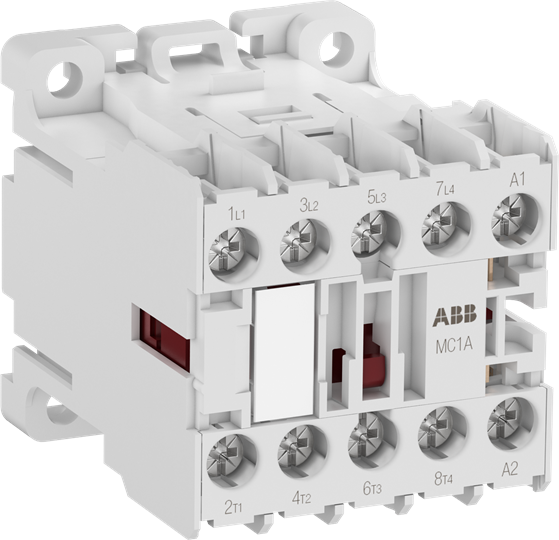

ABB MINI CONTACTOR 4P (4NO), 6A 240V AC CONTROL 220-240V AC MCRA040ATN

Product Code: MCRA040ATN

  • Compact Design, suitable for applications with limited space Capable of efficiently switching of control signals up to 6A/240V Ideal for both residential and industrial settings Suitable for wall or rail mounting
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Mounting Type DIN Rail/Wall
Operational Temperature Range (°C) -40 to +55
Brand ABB
Product Type Mini Contactor Relay
Series M
Auxiliary Contacts 4NO
Mode of Operation AC
No. of Poles 4
Power Loss (W) 0.4/Pole
Rated Control Circuit Voltage AC (V) 220 - 240
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 750
Rated Operational Current AC-15 240V (A) 6
Rated Operational Voltage AC (V) 690
Short-Circuit Protective Device 10A, Fuse Type gG
Terminal Type Screw
Dimensions (mm) 45W x 48H x 56D
Degree of Protection IP20

Description

The Mini Contactor Relay is a compact and high-performance device designed for limited spaces. With a current rating of 6A at 240VAC, it features 4 poles (4 normally open contacts) with screw terminals for easy installation. The control voltage range is 220-240VAC. This versatile relay is suitable for various applications, including residential buildings, commercial buildings, and industrial settings. It can be conveniently mounted on DIN rails or walls.
