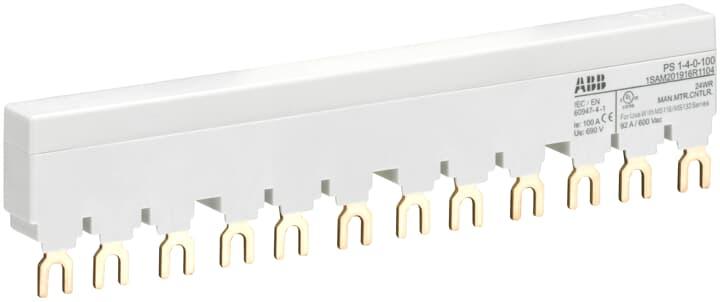

ABB PS1-4-0-100 BUSBAR PS1-4-0-100

Product Code: PS1-4-0-100

PS1-4-0-100 3-phase busbars ensure a quick and safe connection of 4 MS132 or MS116 manual motor starters without lateral auxiliary contacts and are therefore a cost effective solution. The rated current is 100 A.

Technical Specifications

Colour Grey
Width in Number of Modular Spacings 10
Suitable For 4 Devices
Brand ABB
Connection Type Fork
Maximum Operational Voltage AC (V) 690
No. of Mountable Devices 4
No. of Phases 3
No. of Poles 3
Rated Conditional Short-Circuit Current - Inc (kA) 100
Rated Impulse Withstand Voltage (kV) 6
Rated Operational Current (A) 100
Rated Operational Voltage AC (V) 690
Rated Operational Voltage DC (V) 250
Rated Short-Time Withstand Current - Icw (kA) 100
Rated Uninterrupted Current - Iu (A) 100
Length (mm) 176.5
Module Width (mm) 14
Degree of Protection IP20
